Truck Description:
The refuel tank truck transport medium: suitable for transporting diesel, gasoline, heavy oil, coal tar, vegetable oil, edible oil, asphalt and other liquid substances.
Advantage:
1. Tank material is made of high-quality 4-6mm thick carbon steel national standard plate;
2. Can type is square, round, oval;
3. The oil pump has self-priming pump, gear pump, double pump;
4. Can be designed as a chemical transport vehicle;
5. It can be independently divided into warehouses and different oil products. It can realize pumping in and out, self-flow, optional flow meter, computer tax control refueling machine, 15 meters refueling reel (automatic return), and multi-channel wave prevention partition in the tank body, so that the tank has high strength, stable center of gravity, safe and stable vehicle transport.
Technical Description：
General | GVW. | 14000kgs | |
Dimension | 6580mmx2200mmx2300mm | ||
Kerb Weight | 5000kgs | ||
Chassis | Brand | SINOTUK HOWO | |
Cab | Cab Capacity | 2persons allowed with A/C | |
Engine | Fuel Type | Diesel | |
Power | 116Ps(85kw) | ||
Displacement | 3760cc | ||
Emission Standard | Euro II | ||
Superstructure | Tank | 5,000 Liters, Material: Mild steel | |
Pump | Fuel pump equipped for overhead delivery | ||
Suction Head | 6 m | ||
Hose | High quality ,wire strengthened hose,with cooper wire,anti-static | ||

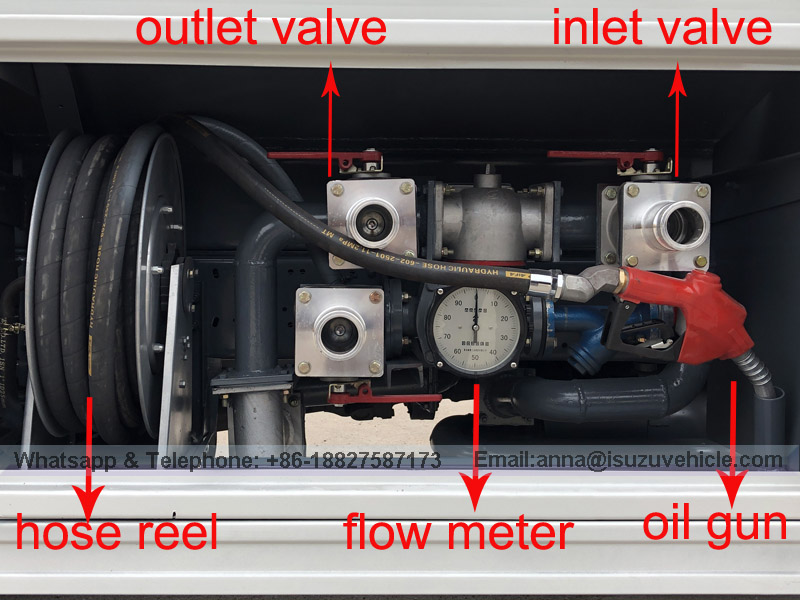

Optional | Flow Meter | The flowmeter is a tool to measure the amount of oil, and it has the function of temporary counting. | |
Fuel Dispenser | Fuel dispenser equipped to calculate sale amount. | ||
