Truck Description:
Fuel bowser (also called oil tank truck, diesel tank truck, fuel dispensing tanker, petrol truck tanker, oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc .
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcoho.....Oil pump equipped, with pump in pump out function.
Advantage:
Chinese top brand chassis, perfect performance, top brand engine, super powerful, reliable performance.

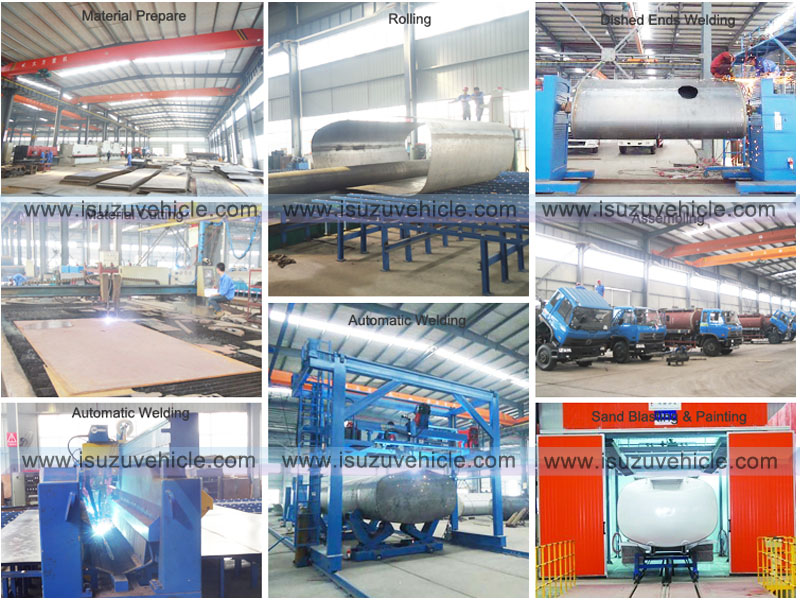

High tank strength, The front and rear sealing heads of the tank are pressed by hydraulic expansion machine, treated by the edge spinning machine, with slight deformation, able to effectively ensure the overall strength and service life of the tank.
Technical Description：

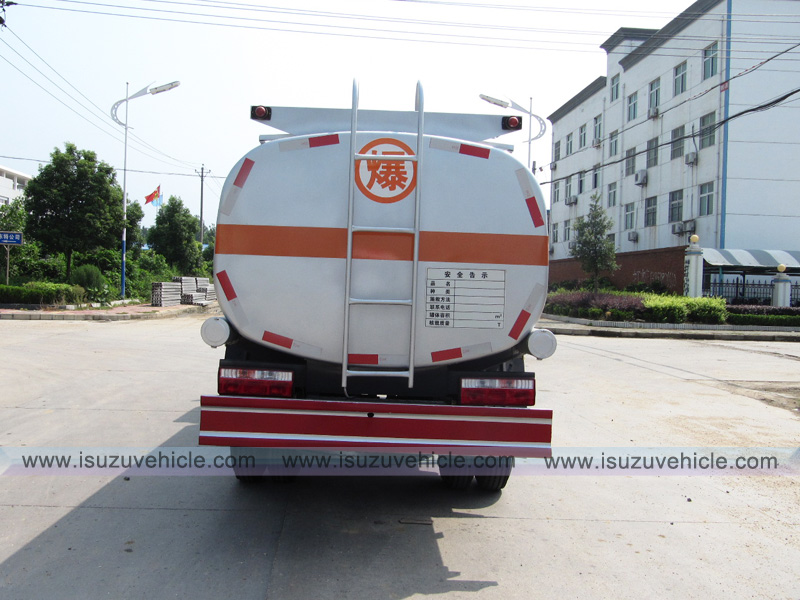

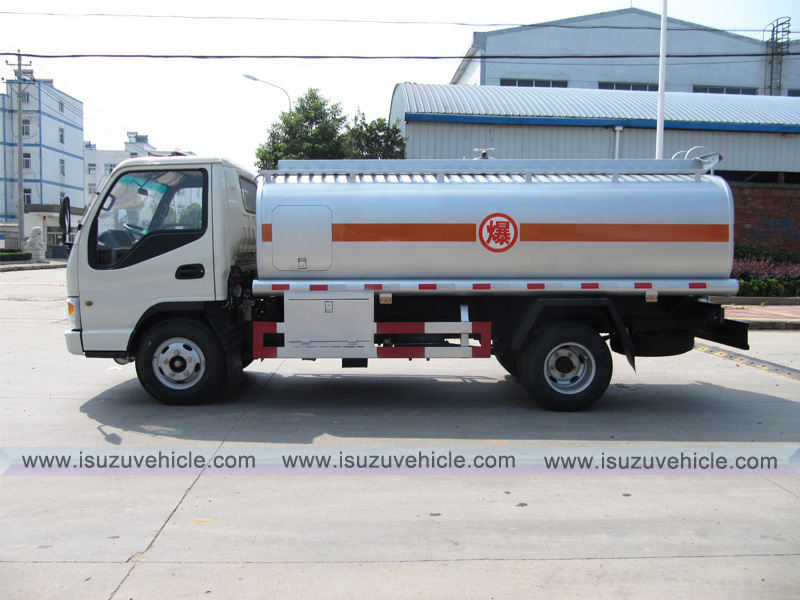

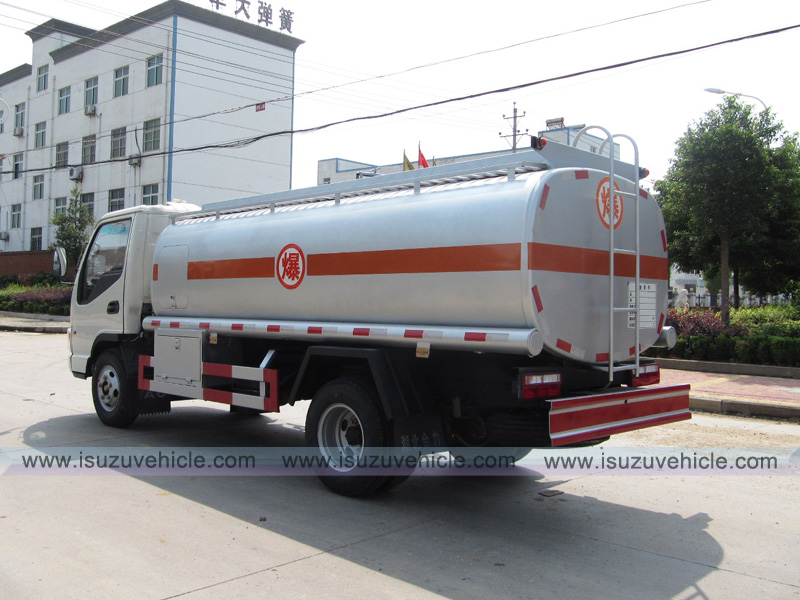

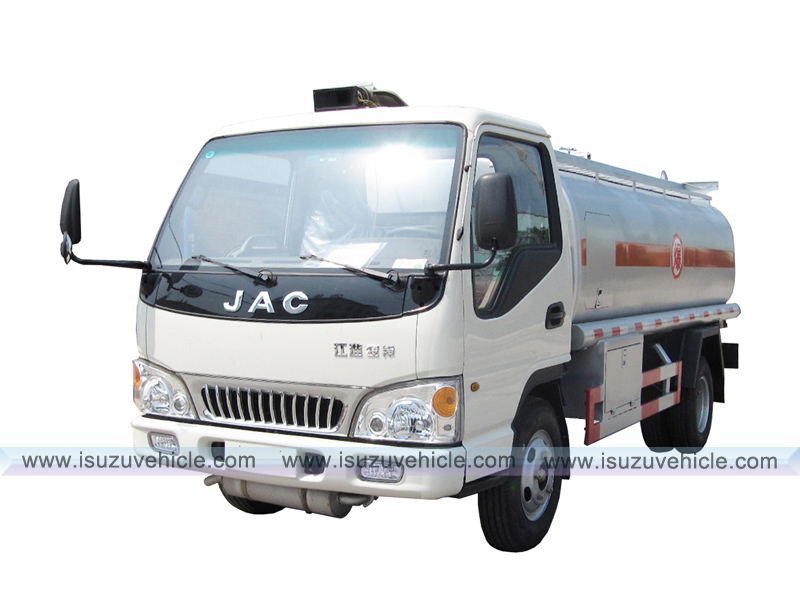

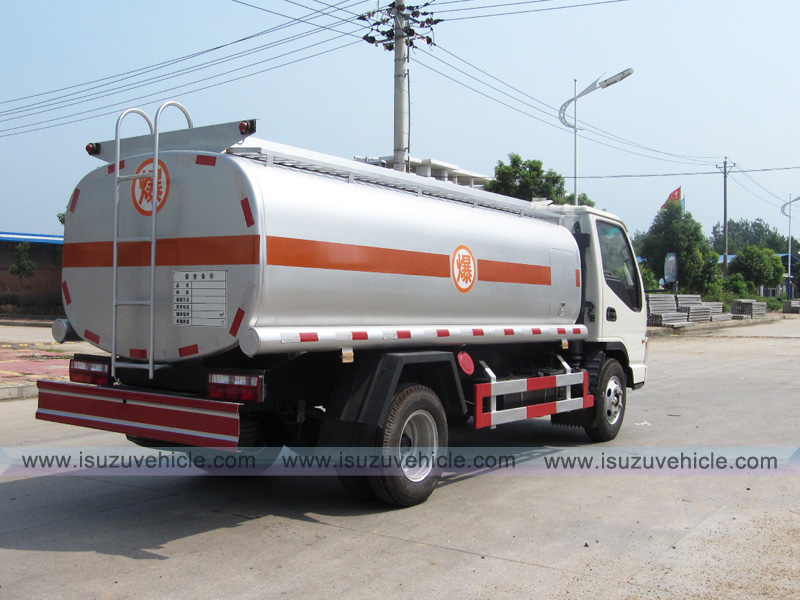

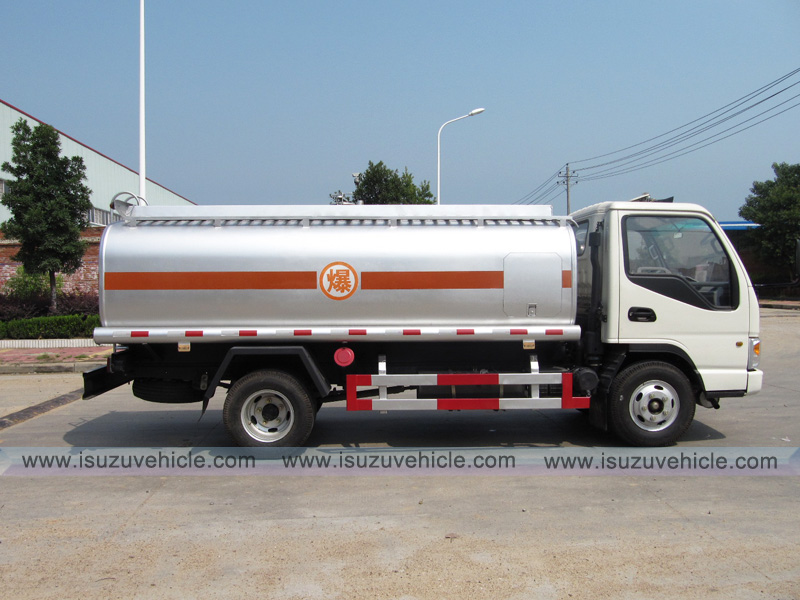

JAC Oil Tank Truck (7,000 Litres) | ||
General | Chassis Brand | JAC |
Overall Dimension | 5995*1920*2600 mm | |
GVW / Kerb Weight | 7,495kg / 3,300kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is optional | |
Engine | Fuel Type | Diesel |
Engine Brand | Dongfeng Chaoyang engine | |
Power | 95Ps (70KW) | |
Displacement | 3707 ml | |
Emission Standard | Euro III | |
Chassis | Drive Type | 4X2, left or right hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3308 mm / 2 | |
Tyre Specification | 6.50-16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 80 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 7,000 Litres (1,848 gallons) |
Tank Material | Carbon steel | |
Pump | Equipped for overhead delivery, 1000 litres / min | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, inlet, discharge…….. | ||
Optional | Tank material could be carbon steel, stainless steel, aluminum…… It can be divided into many compartments. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… Heat preservation & heating system could be added. It can be divided into many compartments to load different types of fuels. Bottom loading system can be equipped. | |
