Key words:

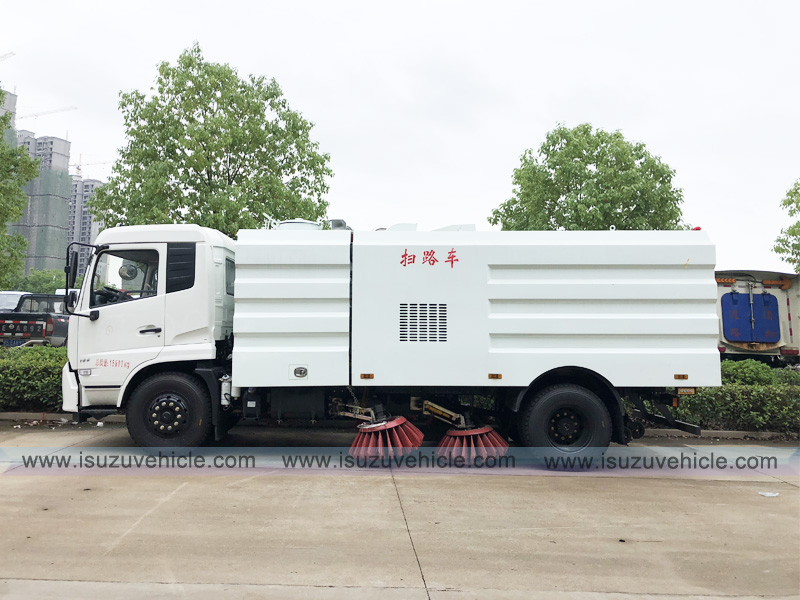

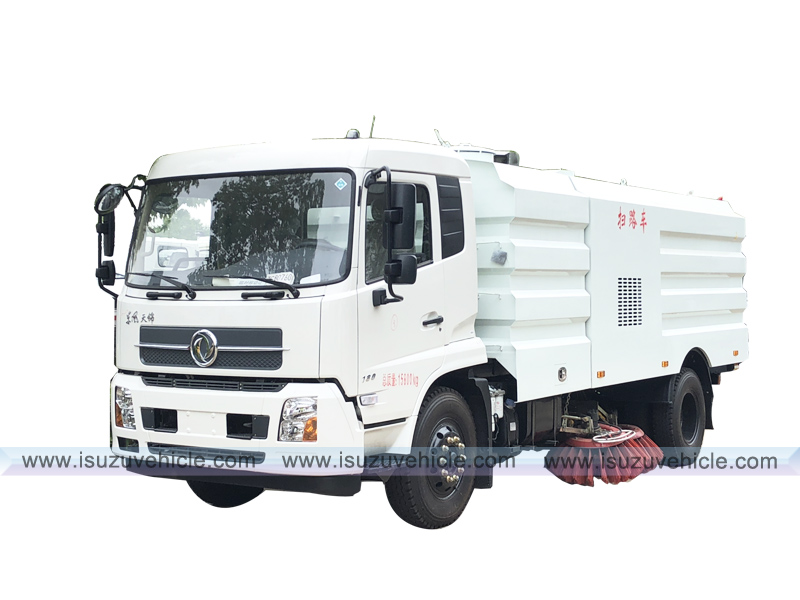

Road sweeper (also called road sweeping truck, road sweeper, street sweeper, street cleaning truck, municipal vehicle, sweeping vehicle) is kind of vacuumed type truck mounted road sweeping machine, it is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.

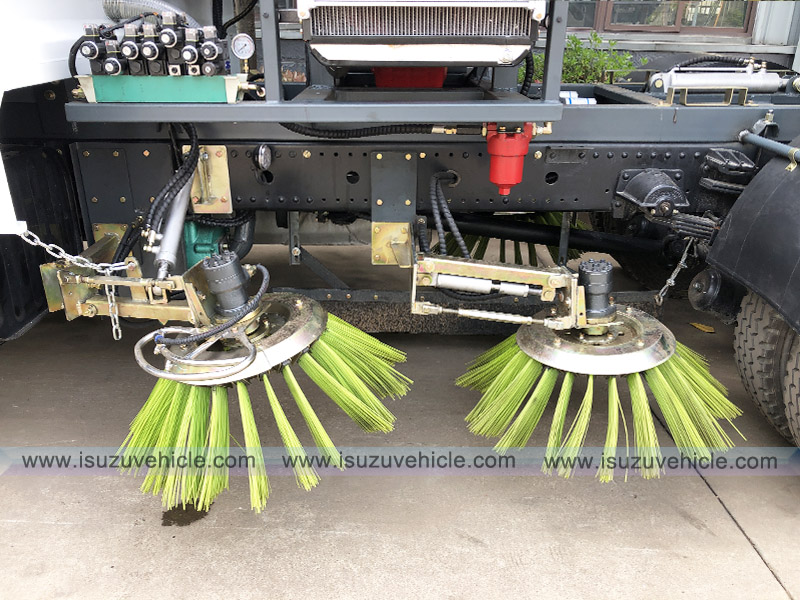

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, sweeping system, suction system, water sprinkling system, hydraulic system, etc.
Features:
1: Dongfeng Chassis and cummins engine, powerful, reliable performance, no overhaul with 100,000 km.
2: Large cleaning width, low oil consumption, easy operation.
3: Dustbin and water tank are made of stainless steel.
4:The Dongfeng road sweeper truck is designed and developed on the basis of the Dongfeng light truck special vehicle chassis to meet needs of sweeping and cleaning urban pavement and curb. The principle of pure suction under negative pressure is adopted to guarantee strong suction force, dust-free working, simple operation, and excellent performance. It can quickly and efficiently sweep the household garbage and spilled objects in streets and roads.
Technology:
Dongfeng Road Sweeper (6cbm dustbin and 4,000 Liters water tank) | ||
Vehicle details | ||
GVW | 16,000 kg | |
Kerb Weight | 10,200kg | |
Overall dimension | 7800x2500x3150 (mmxmmxmm) | |
Cab | Cab capacity | 2 persons' seat with air condition |
Chassis | ||
Chassis brand | Dongfeng | |
Drive Type | 4X2, Left hand drive or right hand drive | |
Fuel Type | Diesel | |
Engine Make | Cummins engine | |
Horse power | 190HP (140kw) | |
Displacement | 5900 cc | |
Air conditioner | Equipped | |
Type of fuel | Diesel | |
Emission standard | Euro III | |
Transmission | 6-speed forward, 1-reverse | |
Brake | Air Brake | |
No. of axles | 2 | |
Tyre | 10.00-20/(6+1)pcs | |
Max speed | 90 km/h | |
Paint | Automotive metallic paint | |
Superstructure details | ||
Water Tank Capacity | 4,000 Liters Carbon steel | |
Dustbin tank capacity | 6 cbm, Stainless steel | |
Max. suction particle | 120 mm | |
Min. clearance of suction nozzle | 200 mm | |
Cleaning capacity | 9000-60000(m2/h) | |
Max. Unloading angle | 45 degree | |
Sweep width | 3200 mm | |
Sweeper brush | 4 pcs | |
Auxiliary engine | JMC engine, (ISUZU technology),77HP (57KW) | |
