Truck Description:
Hydraulic Lift Platform Truck (also called as hydraulic beam lifters, aerial platform operation truck, aerial working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Advantage:
1. Aerial working height 12m,14m,16m,18m,20m,20m,22m
2. the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
4. truck equipped with two rotating amber lights
5. Aerial platform working truck equipped with balance valve, emergency valve to keep safety when people overhead working.
Technical Specification:

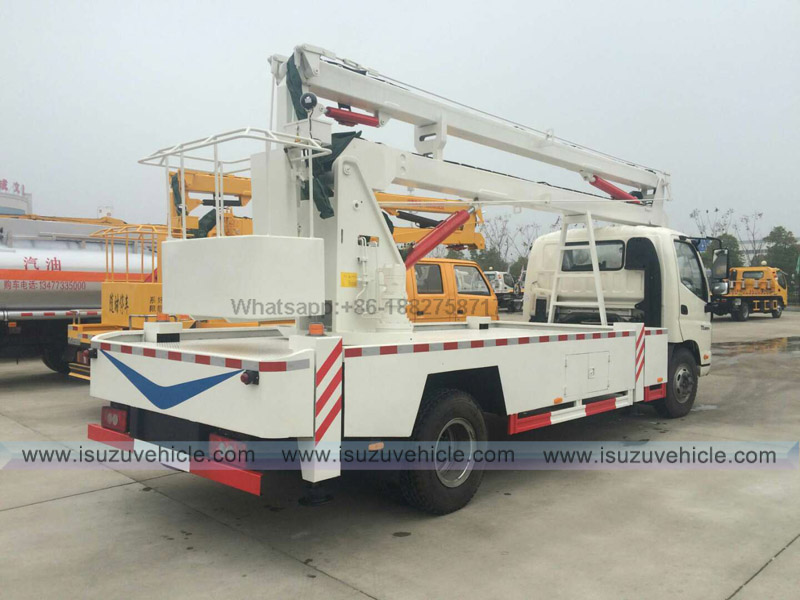

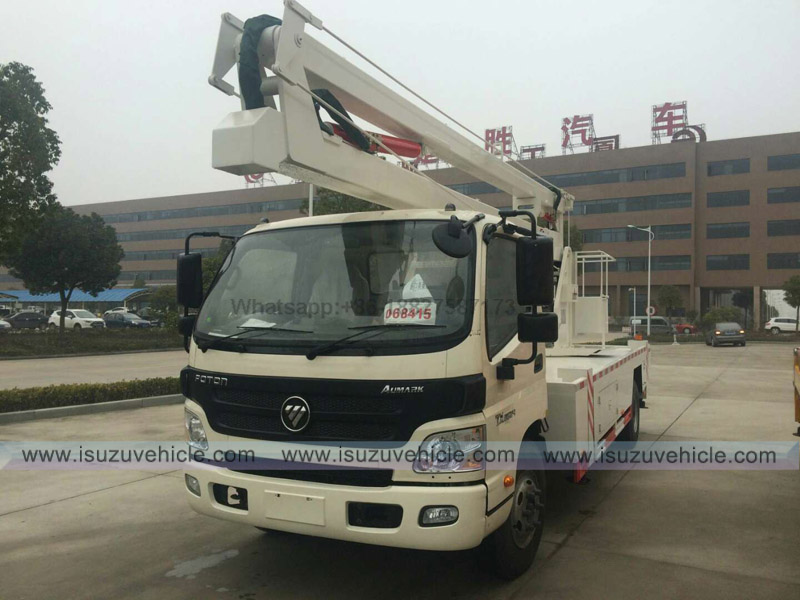

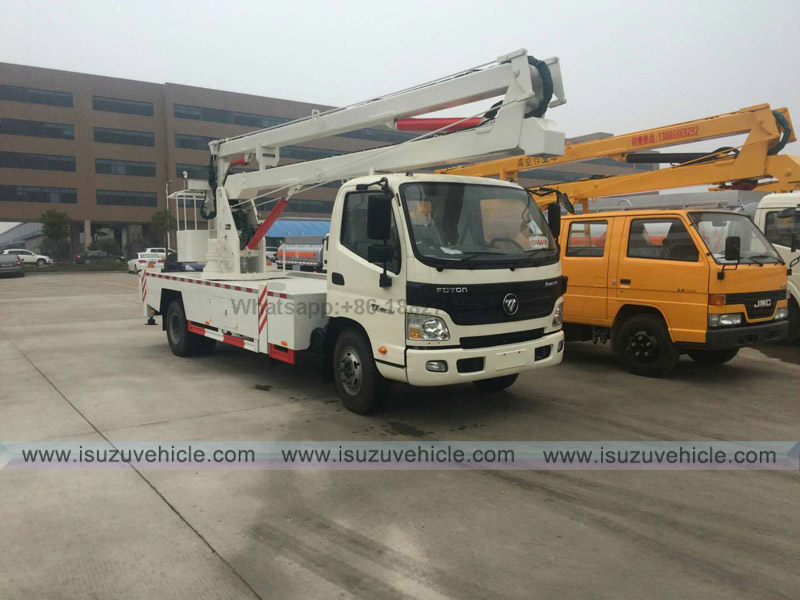

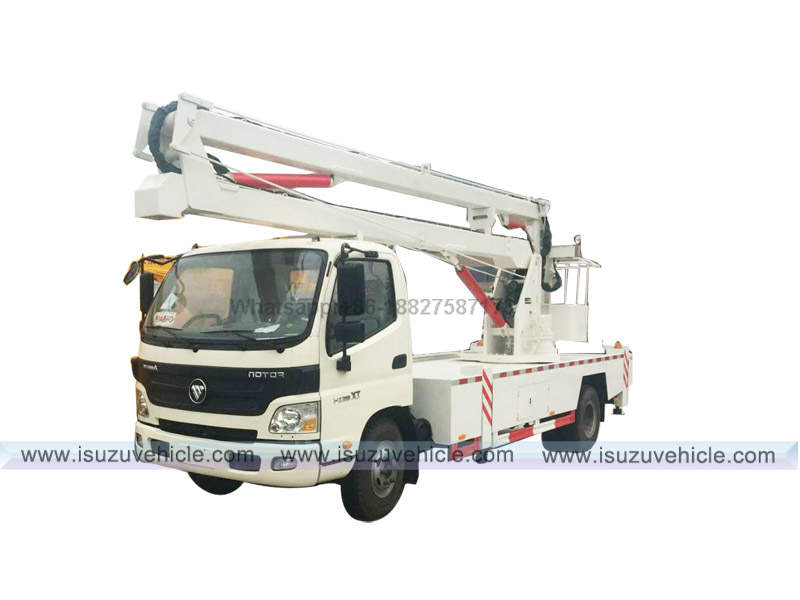

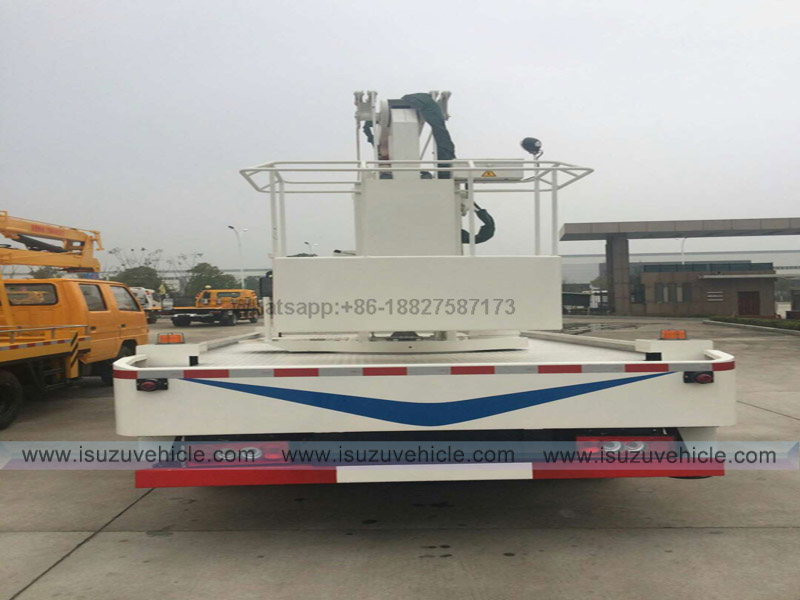

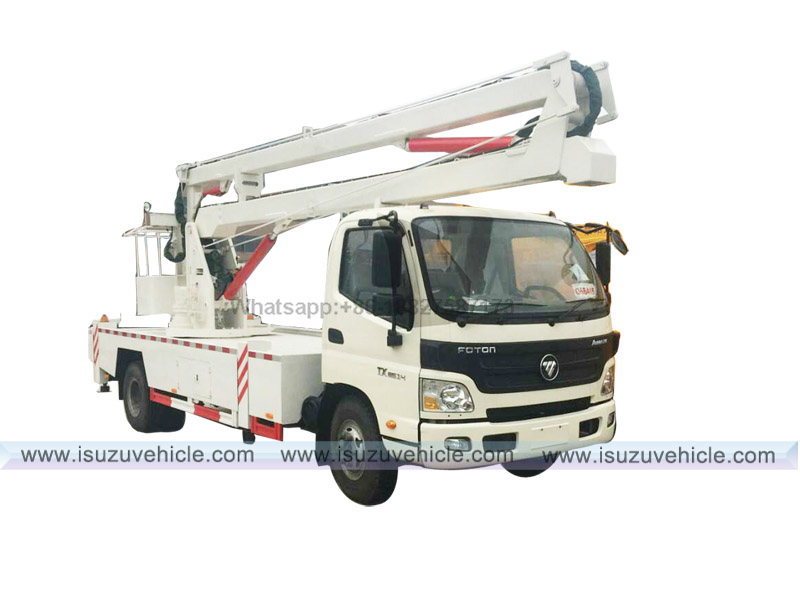

FOTON 12 m Aerial Platform Truck | |||
Chassis Specification | |||
Vehicle model | AUMARK-C33 | ||
Cabin | Single row / 3person | ||
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 | |
Wheel base(mm) | 3360 | ||
Weight data | Curb weight(kg) | 2600 | |
Gross vehicle weight（kg） | 6495 | ||
Whole vehicle main performance | Max. speed（km/h） | 95 | |
Engine (FOTON brand) | Emissions standards | EuroⅢ | |
Displacement（L） | 3.76 | ||
Rated Power（kw/rpm） | 105 | ||
Gearbox | Model | 6TS55 | |
Wheels and tyre size | 6+1(7.00R16) | ||
Superstructure Specification | |||
Power take-off system | Power is taken by the gearbox and operated in the cab | ||
Work bucket | Size 1150×650×1150mm Rated load 200kg | ||
Boom | Two-section folding arm | ||
Swivel device | Two-way 360° continuous rotation | ||
operating system | Two operating systems of working bucket and turntable | ||
Hydraulic system | Electro-hydraulic control, stepless speed regulation, equipped with emergency pump | ||
Go platform | Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform | ||
safety devices | Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device | ||
Leveling system | Built-in combined automatic leveling system | ||
operating system | Two operating systems of working bucket and turntable | ||
Main operating technical parameters | Working height of bucket | 12.3m | |
Maximum working range of working bucket | 6m | ||
Rated load of working bucket | 200Kg | ||
Rotation angle | ±360° continuous | ||
Working range at maximum working height of working bucket | 3m | ||
Working height when working bucket maximum working range | 7.3m | ||
Lifting time of working platform | 80~130s | ||
If you need quotation, please Contact Ms. Anna, I will send to you in the first time. | anna@isuzuvehicle.com, annacntruck@gmail.com Whatsapp & Phone Number: +86-188 2758 7173 | ||
