Truck Description:

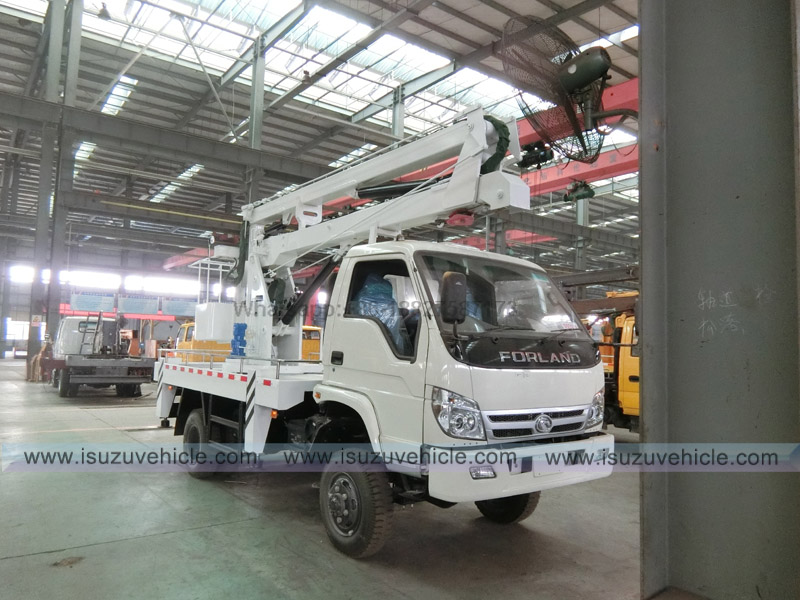

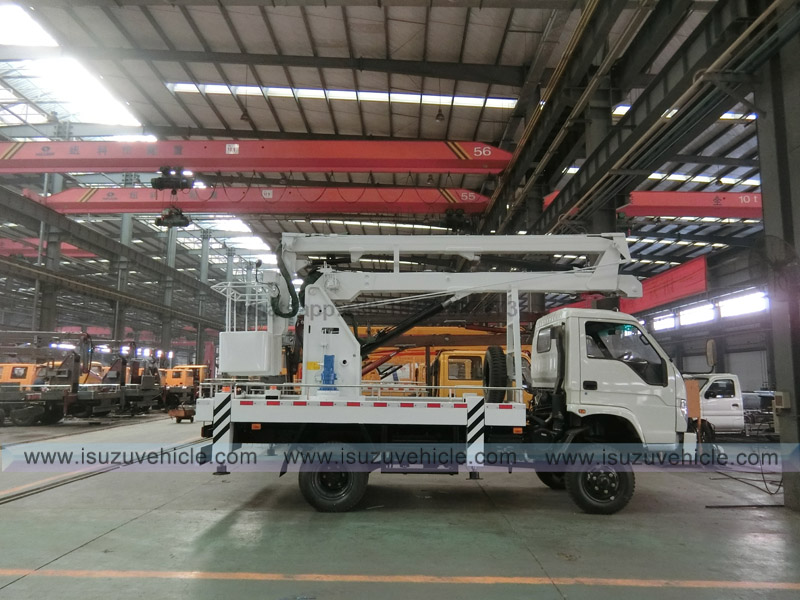

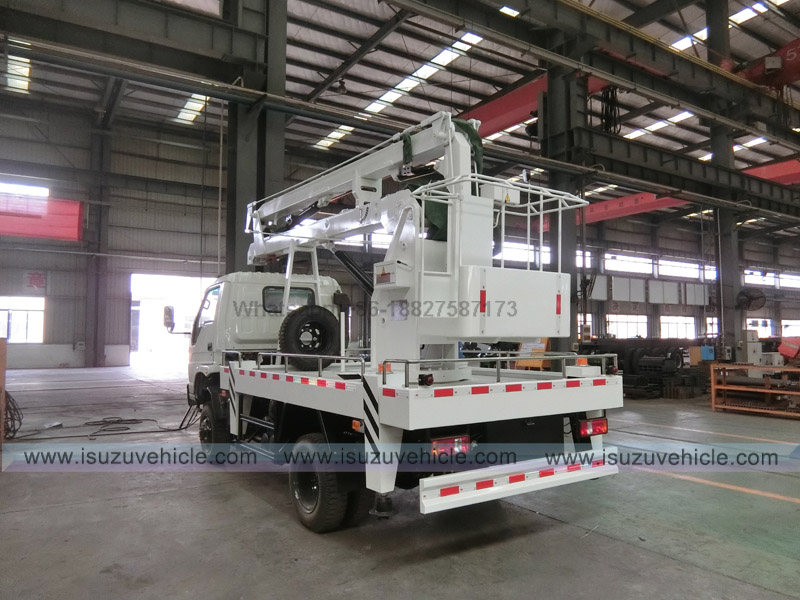

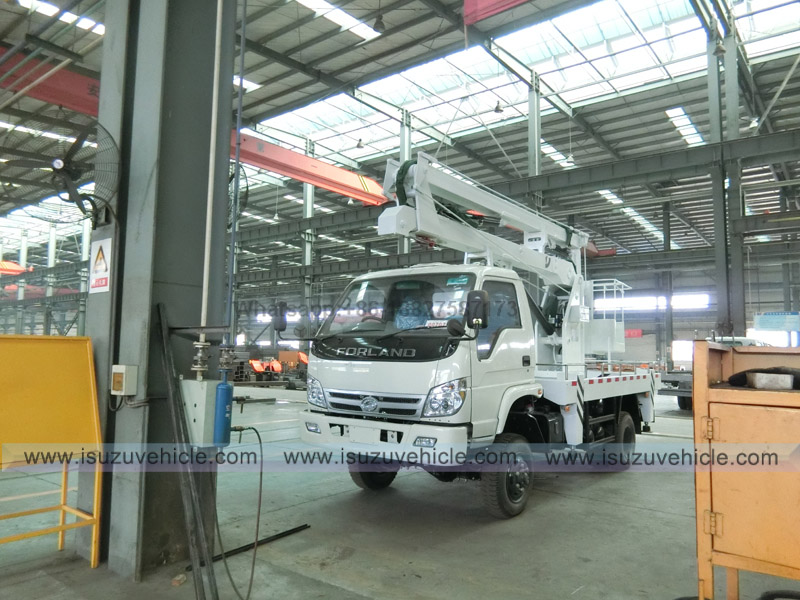

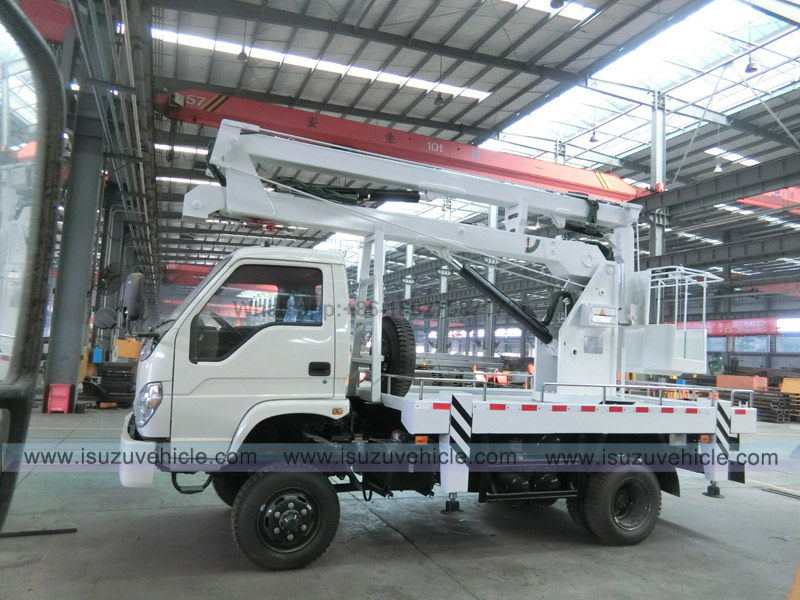

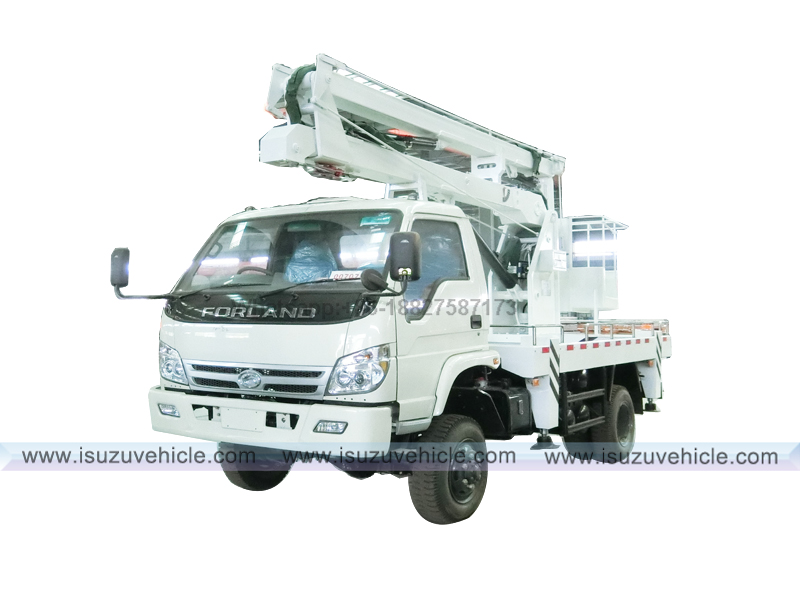

Aerial Lift Truck (also called as hydraulic beam lifters, aerial platform operation truck, aerial working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Advantage:
1. Aerial working height 12m,14m,16m,18m,20m,20m,22m
2. the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
4. truck equipped with two rotating amber lights
5. Aerial platform working truck equipped with balance valve, emergency valve to keep safety when people overhead working.
Technical Specification:
FOTON 14 M High Lifting Platform Truck | |||
Vehicle Parameters | |||
General | Vehicle Brand | CLW | |
Chassis Brand | FOTON | ||
Overall Dimension(mm) | 5875×2030×2230 | ||
GVW/Curb Weight(kg) | 6080/5755 | ||
Chassis Parameters | |||
Cab | Cab Seat | 3 | |
Air Conditioner | Equipped | ||
Engine | Fuel Type | diesel | |
Engine Brand | FOTON | ||
Power(kw/hp) | 154 Ps(115kw) | ||
Displacement(L) | 3.760 | ||
Emission Standard | Euro V | ||
Chassis | Drive Type | 4*4, LHD | |
Transmission | 5 forward gears&1reverse | ||
Wheelbase(mm) | 3360 / 2 | ||
Tire Specification | 7.00R16 | ||
Tire No.(pcs) | 6+1 | ||
Max Speed(km/h) | 95 | ||
Paint | Metallic paint | ||
Aerial Platform Structure Parameters | |||
Cage rated capacity | 200 kg | ||
Working height | 14 M | ||
Max. out reach(m) | 11 | ||
Max lifting weight (kg) | 1000 | ||
Rotating speed | 0-2r/min | ||
The whole boom outreaching time | ≦30s | ||
Emergency system | optional | ||
If you need quotation, please Contact Ms. Anna, I will send to you in the first time. | anna@isuzuvehicle.com, annacntruck@gmail.com Whatsapp & Phone Number: +86-188 2758 7173 | ||
