Truck Description:

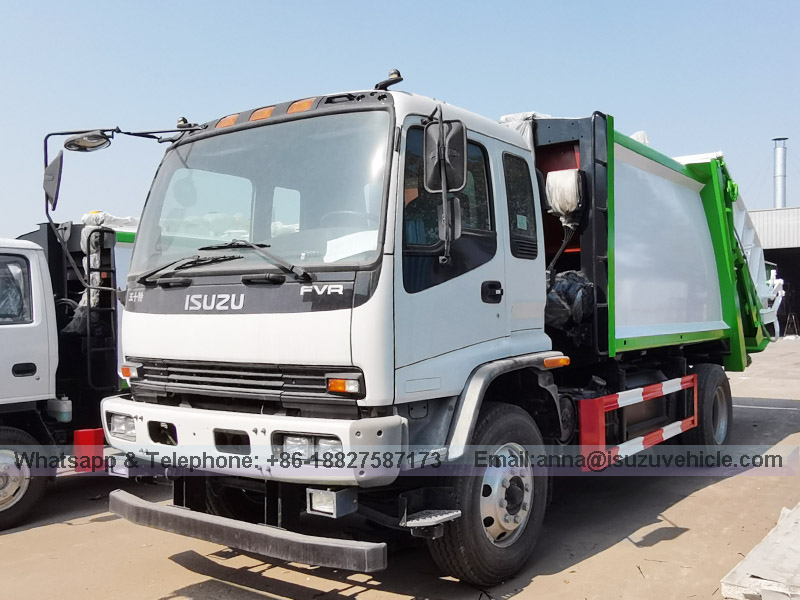

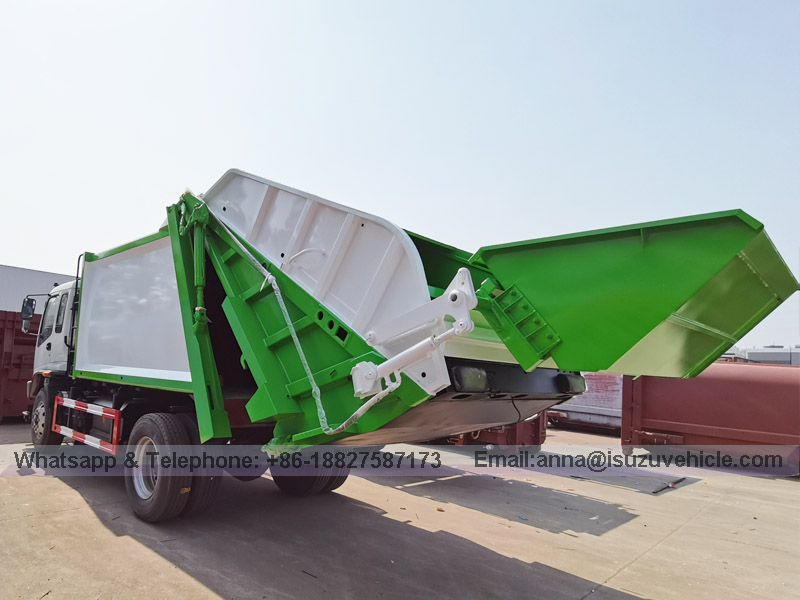

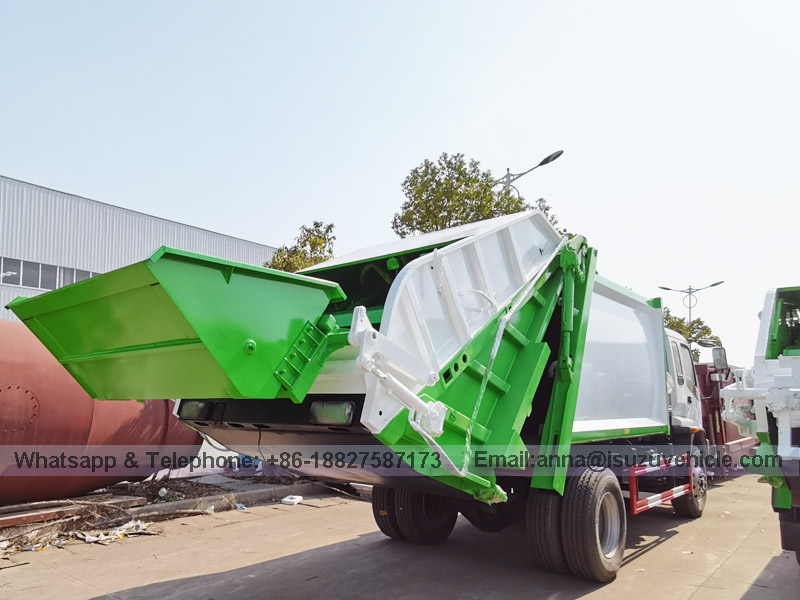

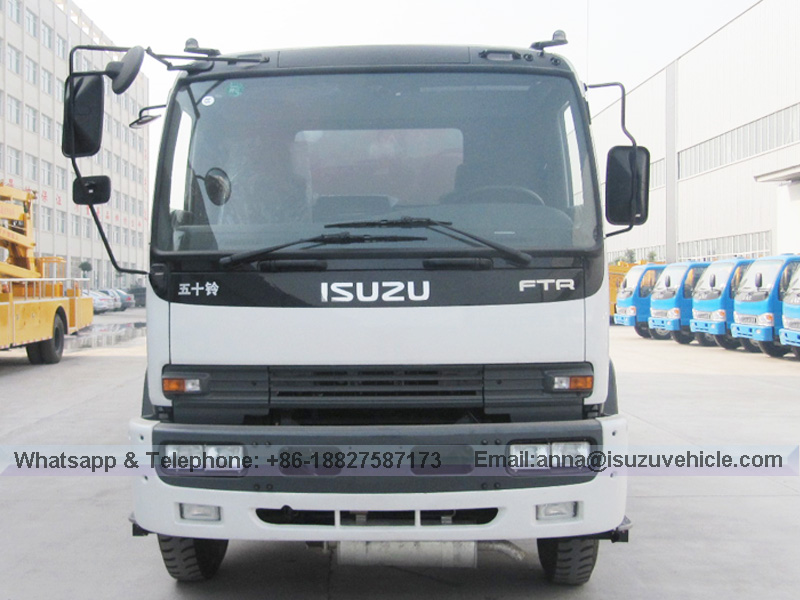

Trash Compactor Truck(also called waste compactor truck, garbage truck, bin trucks, waste compactor, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck) consists of sealed garbage compartment, hydraulic system and operating system. The whole truck is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered in the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.
Advantage:
1: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
2: High pressure, good sealing, convenient operation and safety.
3: High compression ratio and large loading capacity.
4: Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.
5: Compression body capacity from 3 to 20 CBM
6: Various types of refuse container lifer are available.
Technical Specification:

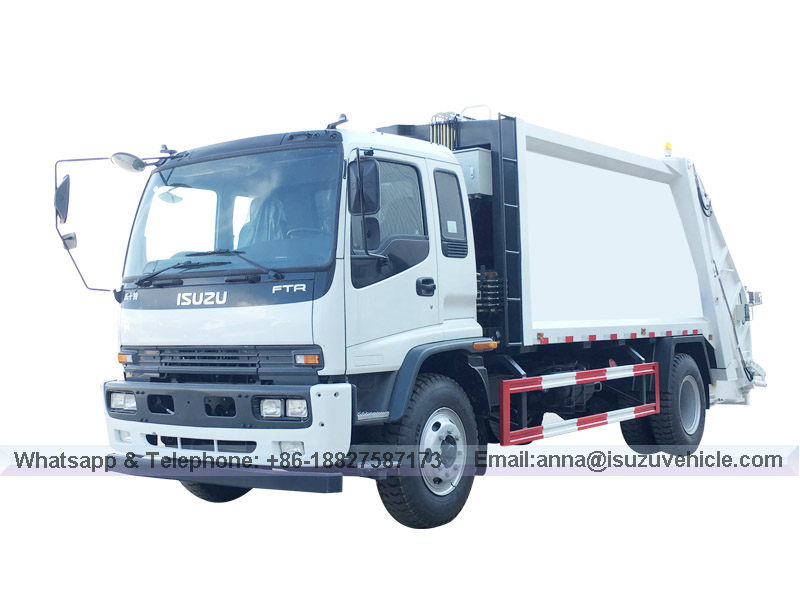

10-16cbm ISUZU brand Trash Compactor Truck | ||
Vehicle details | GVW | 16,000kg |
Kerb Weight | 9,200 kg | |
Overall dimension | 8850X2500X3250(mmxmmxmm) | |
Chassis | Chassis brand | ISUZU |
Engine brand | ISUZU | |
Air conditioner | Equipped | |
Type of fuel | Diesel | |
Emission standard | Euro V | |
Horse power | 205HP (150kw) | |
Displacement | 5193 cc | |
Wheelbase/ No. of axles | 4350+1350 mm / 2 | |
Tyre | 10.00-20/(10+1)pcs | |
Max speed | 80 km/h | |
Superstructure details | Capacity | 10-16CBM |
Box material | Carbon steel | |
Multi-way reversing valve | China famous brand | |
Hydraulic cylinder | China famous brand | |
1.Both manual and electrical control. Operator can control in the cabin, behind cabin or at truck tail. Very convenient and efficient. 2. Advanced and effective hydraulic system, the truck can achieve two-way compression, which would improve compression ratio up to 2.5:1, garbage density about 600-800 kg/m3 after compression. 3. Sewage tank equipped, sewage flow directly into the tank during compression, which would effectively prevent second pollution caused by sewage leaking. 4. Emergency stop function equipped to ensure safety. 5. All other standard accessories: Tool kit, English manual. | ||
Remark | Above specification is just for reference, please send us your detail request. | |
