Truck Description:
Aerial platform trucks (also called as hydraulic beam lifters, aerial platform operation truck, aerial working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Performance Features:
1: Convenient operation. The upper & lower operating system may complete various operation actions; the 3-section arm may be folded, with one-way balance valves, able to achieve the stable operation of the arm, convenient for adjustment; the complete vehicle has stable operation, with high safely & comfortableness; outriggers may be operated separately or simultaneously, to maintain the stable state of the vehicle.
2: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance.
3: Excellent performance: the steel structure of the complete vehicle is made of high-strength materials. The main hydraulic and electrical components are produced by domestic & overseas famous manufacturers.
4: High efficiency operation & Convenient maintenance.
5: Handiness & wear resistance, the super-large working platform may carry 200KG (2people at most), able to be rotated 360 degree.
Technical Specification:

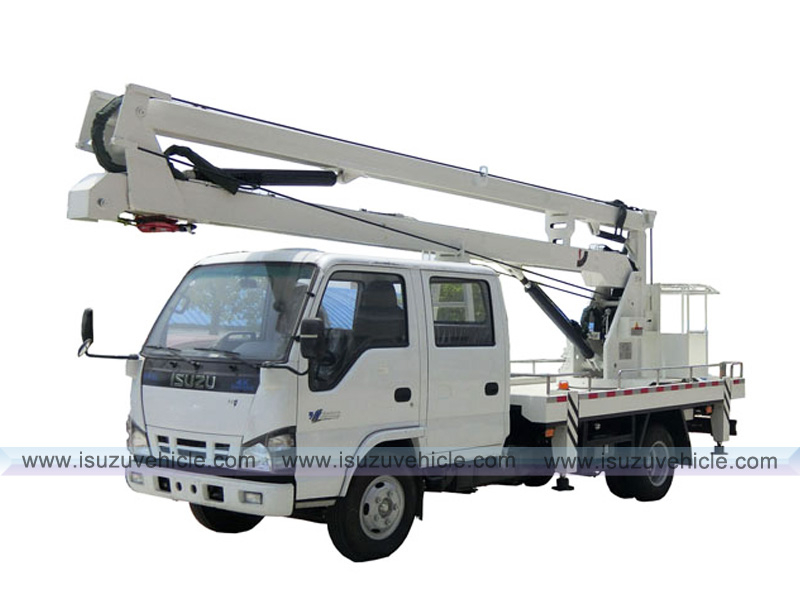

ISUZU 18 M Aerial Platform Trucks | |||
General | Chassis Brand | ISUZU | |
Overall Dimension(mm) | 6880x5755x6880 | ||
GVW/Curb Weight(kg) | 6080/5755 | ||
Cab | Cab Seat | 2+3 | |
Air Conditioner | Equipped | ||
Engine | Fuel Type | diesel | |
Engine Brand | ISUZU | ||
Power(kw/hp) | 120 Ps(88kw) | ||
Displacement(L) | 2.999 | ||
Emission Standard | Euro IV | ||
Chassis | Drive Type | 4*2 , LHD | |
Transmission | Isuzu MSB transmission,5 forward gears&1reverse, no overhaul within 500,000 km | ||
Wheelbase(mm) | 3360 / 2 | ||
Tire Specification | 7.00R16 | ||
Tire No.(pcs) | 6+1 | ||
Max Speed(km/h) | 95 | ||
Paint | Metallic paint | ||
Aerial Platform Structure Parameters | |||
Cage rated capacity | 200 kg | ||
Working height | 18m | ||
Max. out reach(m) | 11 | ||
Max lifting weight (kg) | 1000 | ||
Rotating speed | 0-2r/min | ||
The whole boom outreaching time | ≦30s | ||
Emergency system | optional | ||
Contact | Ms. Anna Whatsapp & Telephone: +86-18827587173 Email: annatruck@foxmail.com | ||
