Truck Description:

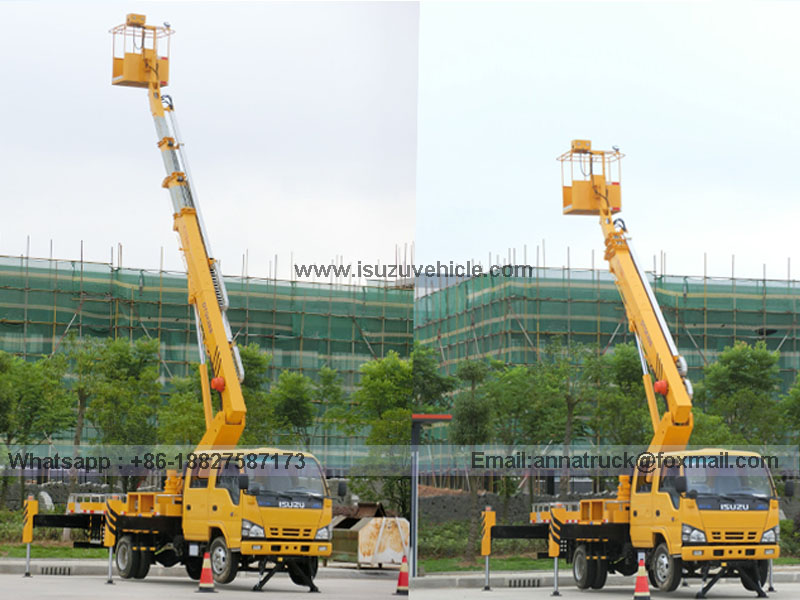

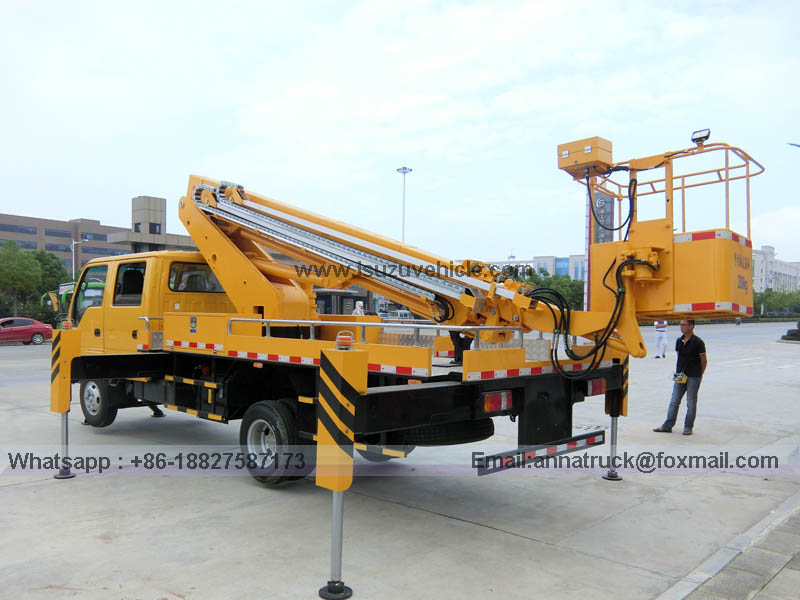

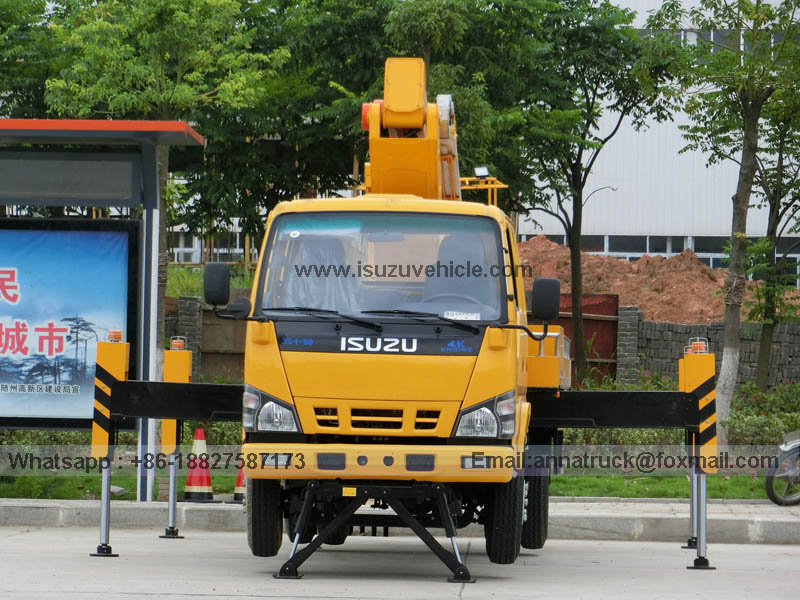

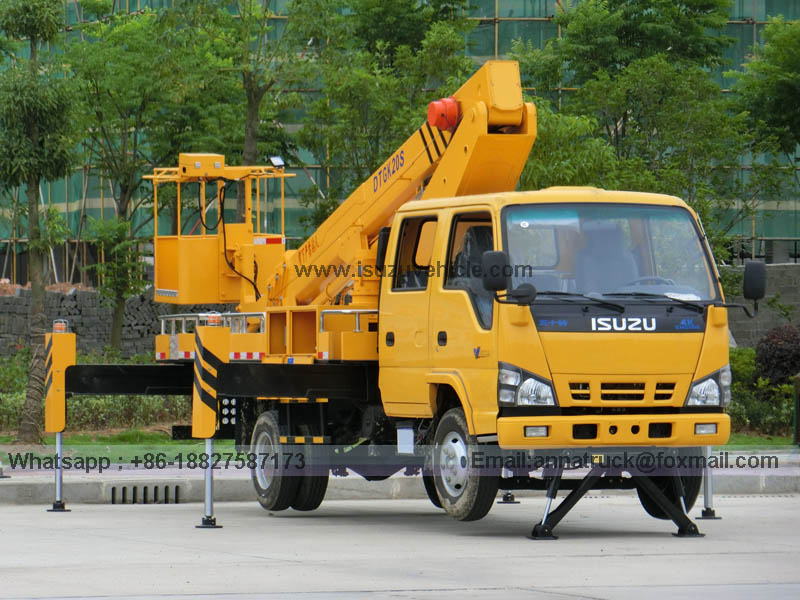

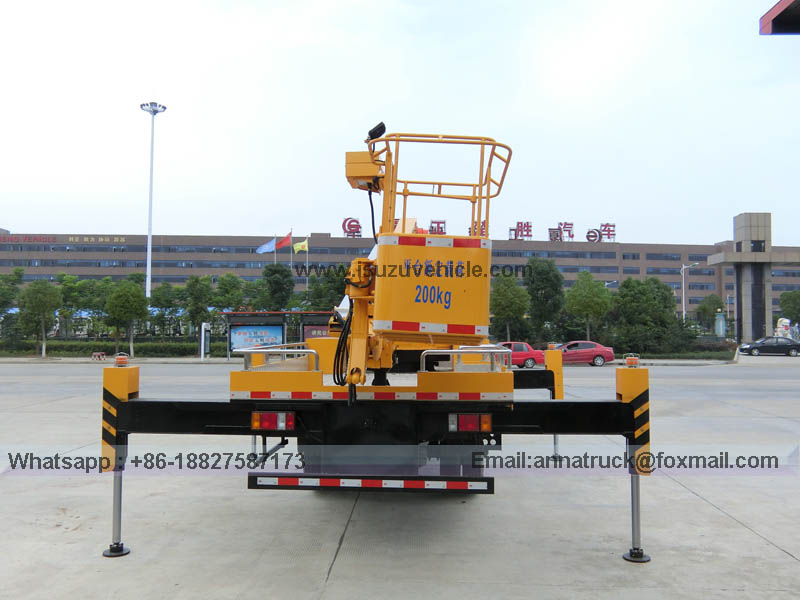

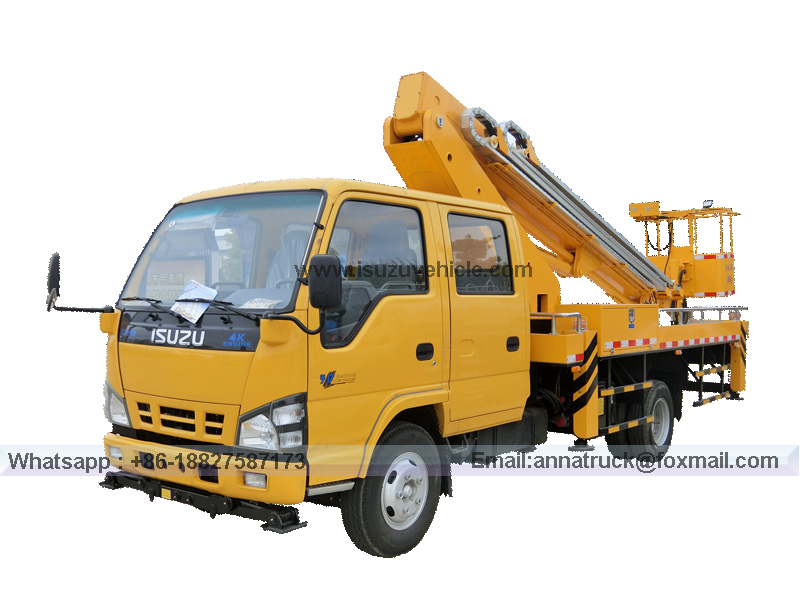

This aerial platform truck is widely applied in the fields of gardening, advertising, expressway, construction and so on.
Aerial platform trucks (also called as hydraulic beam lifters, aerial platform operation truck, aerial working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Performance Features:
This aerial work vehicle uses a fully electronic control system, which is very simple to operate.
Whether it is to get on or get off, it only needs to press a button to complete, which greatly saves time.
Moreover, its platform has a strong load carrying capacity, which can carry up to two people and 200 kilograms of items.
In this way, even if you need to carry tools and equipment for work, it is not a problem at all.
With two-wheel drive and steering, it can easily turn even in narrow construction sites. At the same time, it is equipped with retractable legs that can be adjusted according to different ground conditions, ensuring that the body is always stable so that whether on urban roads or on mountain sites, the aeril working truck can easily cope.
Technical Specification:
ISUZU 20M Aerial Working Trucks |
|||
General |
Chassis Brand |
ISUZU |
|
Overall Dimension(mm) |
6880x5755x6880 |
||
GVW/Curb Weight(kg) |
6080/5755 |
||
Cab |
Cab Seat |
2+3 |
|
Air Conditioner |
Equipped |
||
Engine |
Fuel Type |
diesel |
|
Engine Brand |
ISUZU |
||
Power(kw/hp) |
120 Ps(88kw) |
||
Displacement(L) |
2.999 |
||
Emission Standard |
Euro V |
||
Chassis |
Drive Type |
4*2 , LHD or RHD |
|
Transmission |
Isuzu MSB transmission,5 forward gears&1reverse, no overhaul within 500,000 km |
||
Wheelbase(mm) |
3360 / 2 |
||
Tire Specification |
7.00R16 |
||
Tire No.(pcs) |
6+1 |
||
Max Speed(km/h) |
95 |
||
Paint |
Metallic paint |
||
Aerial Platform Structure Parameters |
|||
Cage rated capacity |
200 kg |
||
Working height |
18m |
||
Max. out reach(m) |
11 |
||
Max lifting weight (kg) |
1000 |
||
Rotating speed |
0-2r/min |
||
The whole boom outreaching time |
≦30s |
||
Emergency system |
optional |
||
Contact |
Ms. Anna Whatsapp & Telephone: +86-18827587173 Email: annatruck@foxmail.com |
||
