Description:

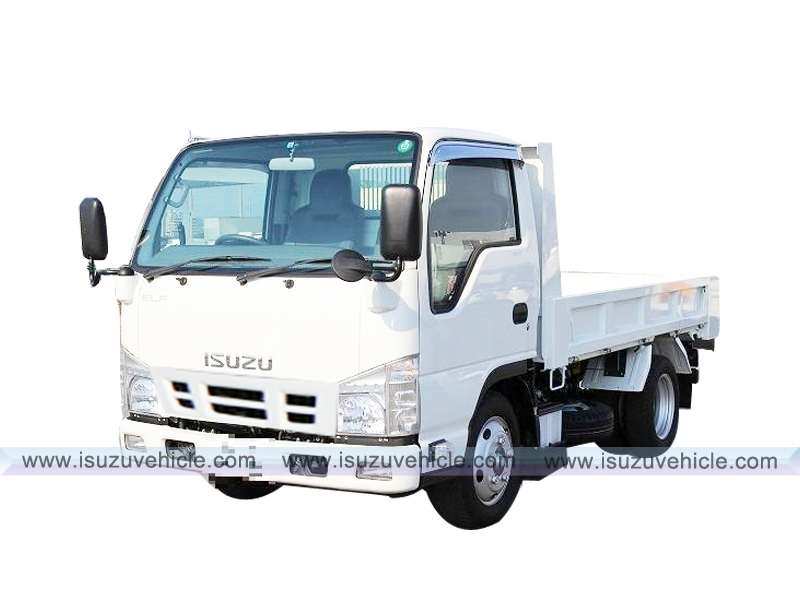

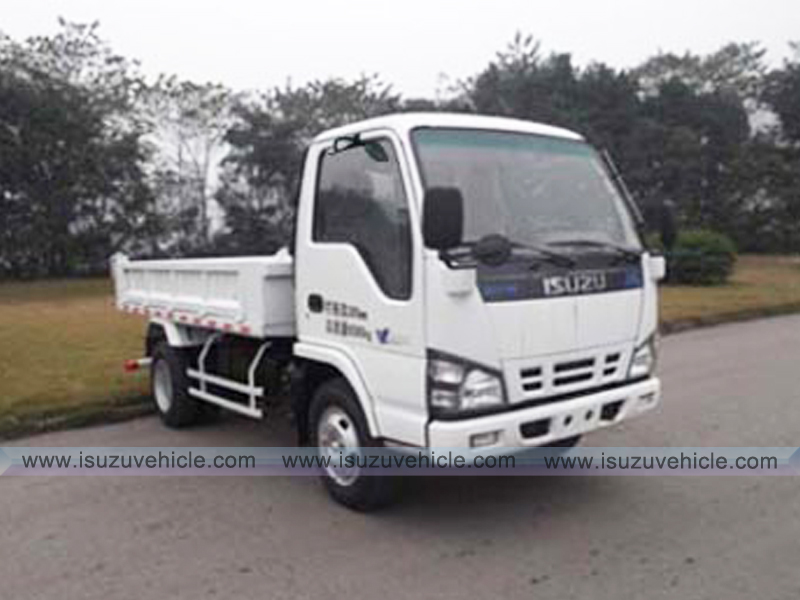

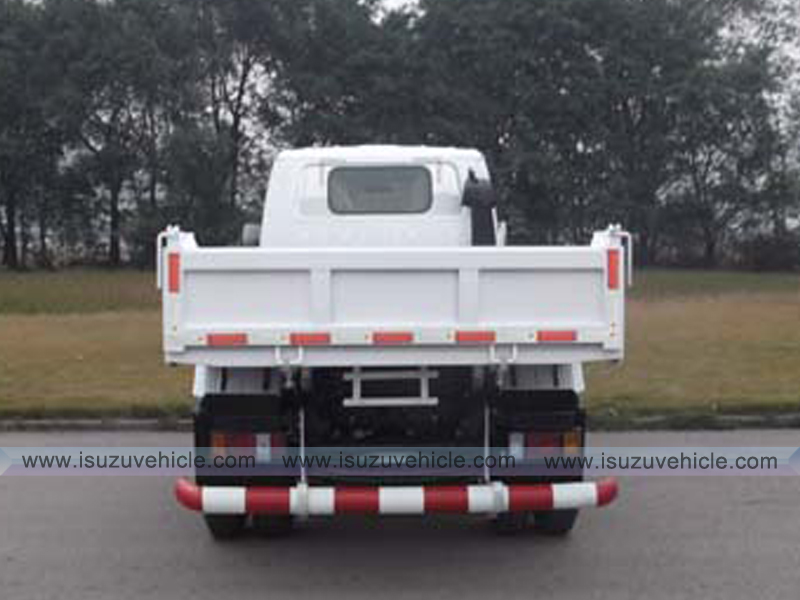

Tipper truck (Also called tipper, dump tipper truck, dumping truck,ISUZU tipper truck, sealing dump truck)is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on.
Features:
The 3tons can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Technical Parameters
Tipper Truck ISUZU(Volume: 3cbm) | ||
General | Chassis Brand | ISUZU |
Overall Dimension | 5900 x 2300 x 2900mm | |
GVW / Kerb Weight | 4,000 kg / 1,560 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 98Hp (72KW) | |
Displacement | 2771 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 650R15 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90km/h | |
Paint | Metallic paint | |
Superstructure | Box Volume | 3cbm |
Box Dimension | 3000 x 2300 x 500 mm | |
Box Thickness | Side 3mm, Bottom 4mm | |
Hydraulic System | HYVA system, front lift, back tip | |
All other standard accessories: Tool kit, English manual | ||



Description:
Tipper truck (Also called tipper, dump tipper truck, dumping truck,ISUZU tipper truck, sealing dump truck)is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on.
Features:
The 3tons can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Technical Parameters
Tipper Truck ISUZU(Volume: 3cbm) | ||
General | Chassis Brand | ISUZU |
Overall Dimension | 5900 x 2300 x 2900mm | |
GVW / Kerb Weight | 4,000 kg / 1,560 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 98Hp (72KW) | |
Displacement | 2771 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 650R15 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90km/h | |
Paint | Metallic paint | |
Superstructure | Box Volume | 3cbm |
Box Dimension | 3000 x 2300 x 500 mm | |
Box Thickness | Side 3mm, Bottom 4mm | |
Hydraulic System | HYVA system, front lift, back tip | |
All other standard accessories: Tool kit, English manual | ||
