Truck Description:

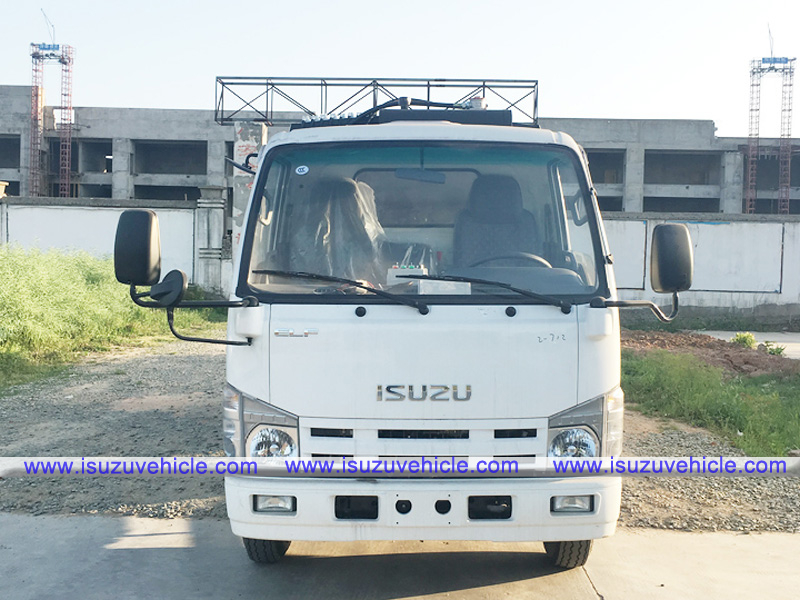

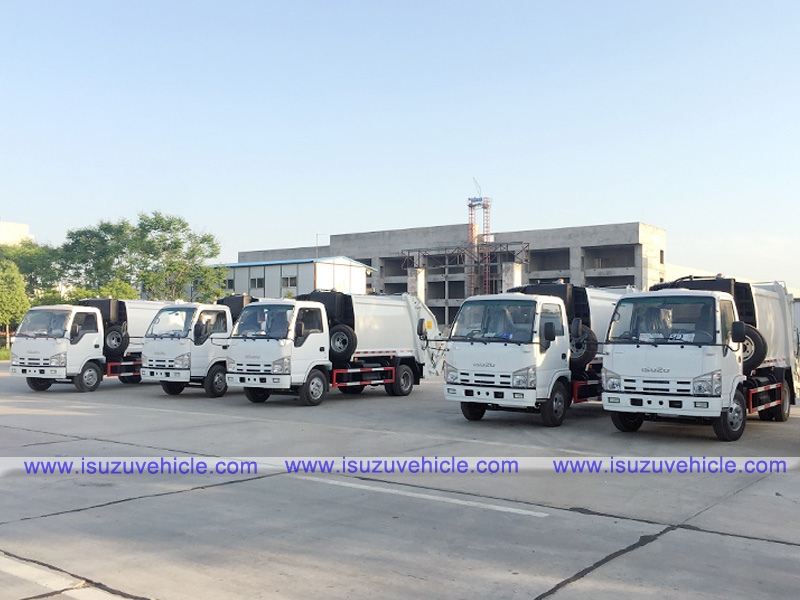

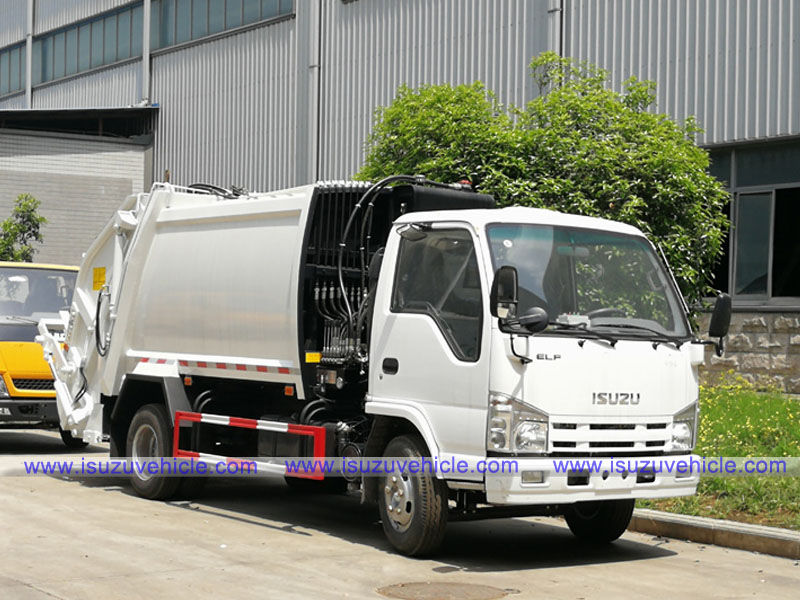

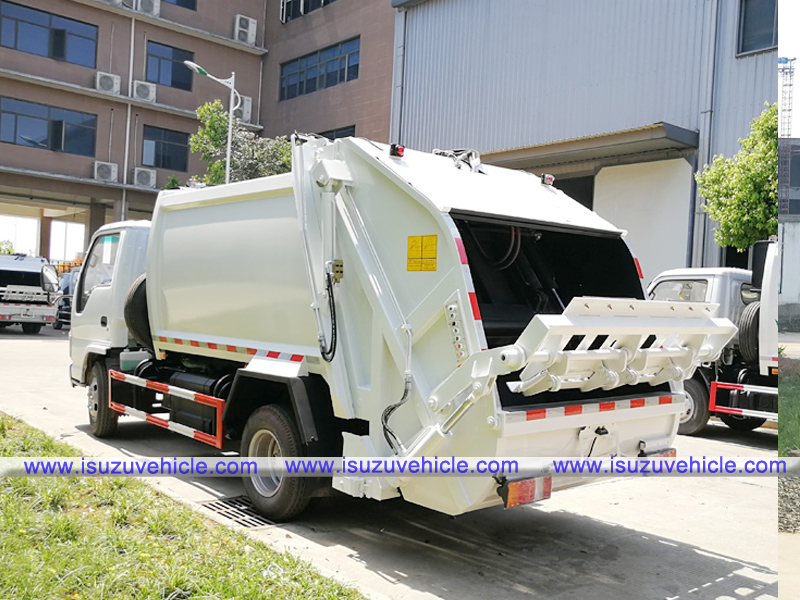

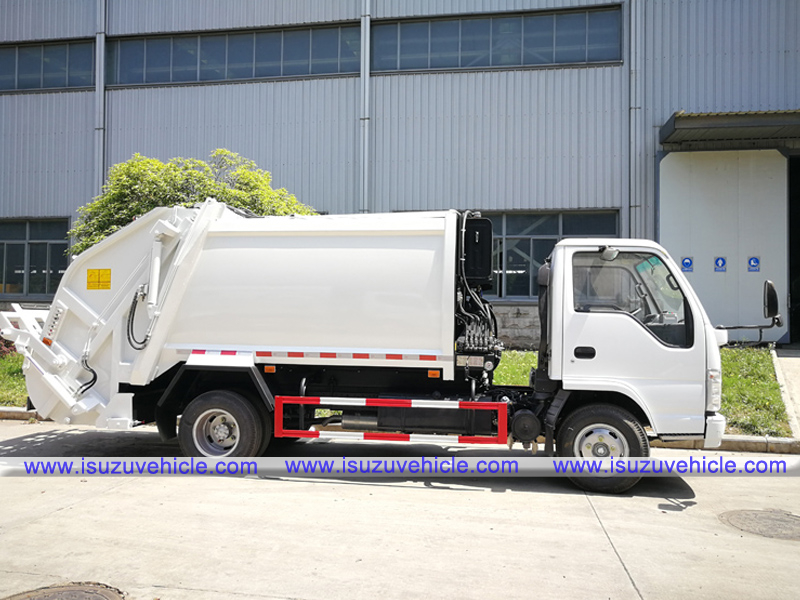

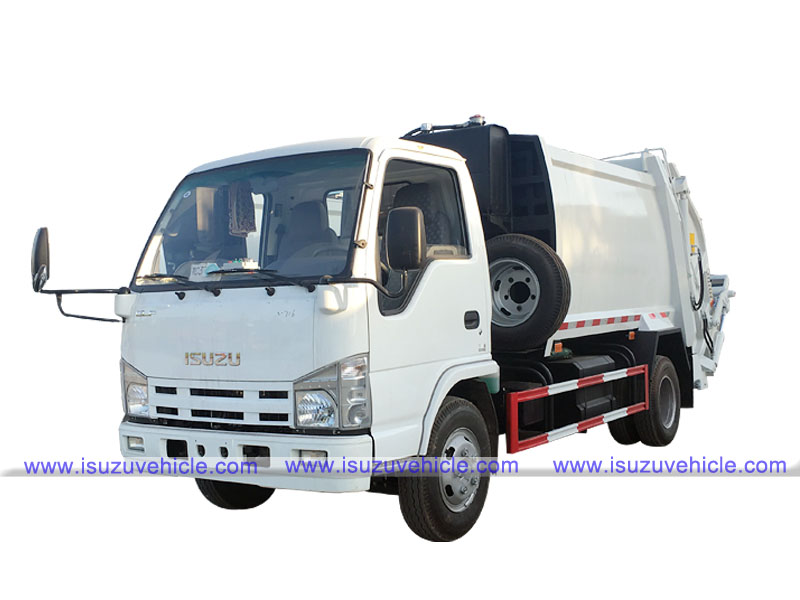

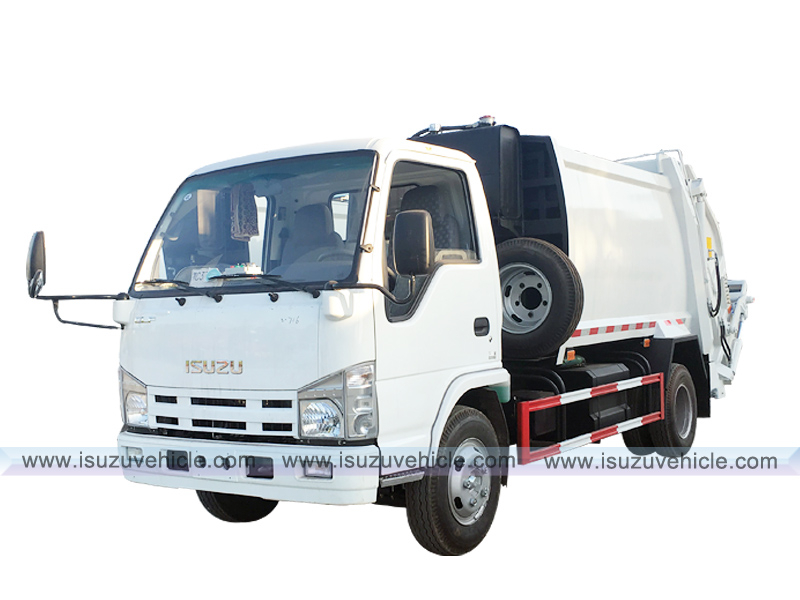

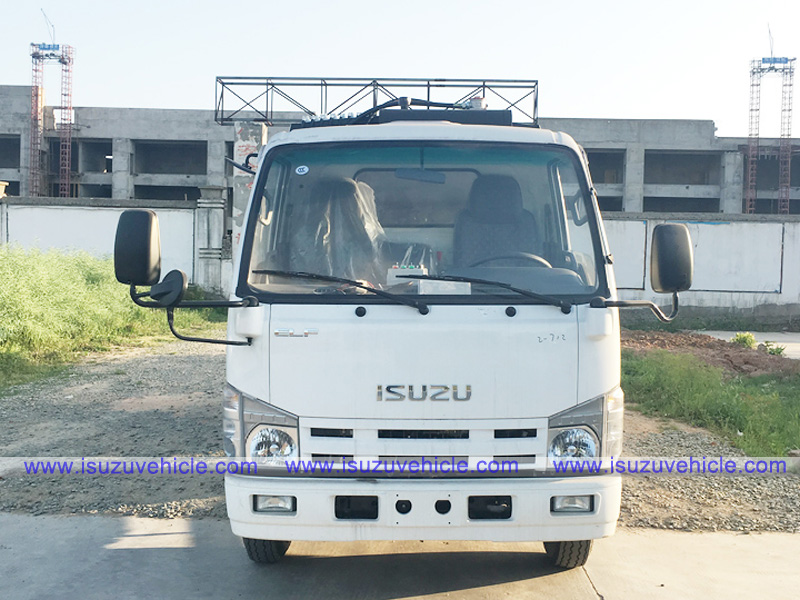

ISUZU 4cbm Waste Compactor Truck(also called as garbage truck, compressed garbage truck, dirt-wagon, dust cart trash truck, refuse collection truck, dustcart, bin lorry, waste collection vehicle) is a special purpose vehicle used to transport all kinds of garbage in municipal sanitation department.
Advantage:
1: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
2: High pressure, good sealing, convenient operation and safety.
3: High compression ratio and large loading capacity.
4: Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.
5: Compression body capacity from 4 to 18 CBM
6: Various types of refuse container lifer are available.
Technical Specification:
ISUZU 4cbm Waste Compactor Truck | ||
Vehicle Parameters | ||
General | GVW | 7300 kg |
Kerb Weight | 5000 kg | |
Overall dimension | 6600x2100x2600 (mmxmmxmm) | |
Chassis Parameters | ||
Cab | Cab seat | 3 seats |
Air conditioner | Equipped | |
Engine | Type of fuel | Diesel |
Engine brand | ISUZU | |
Emission standard | Euro IV | |
Horse power | 98HP (72kw) | |
Displacement | 2771 cc | |
Chassis | Brand | ISUZU |
Drive type | 4x2 LHD | |
Transmission | 5 speed front, 1 reverse, Manual | |
Wheelbase/ No. of axles | 3360 mm / 2 | |
Tire No.(pcs) | 7.00-16/(6+1)pcs | |
Max Speed(km/h) | 105 km/h | |
Superstructure | ||
Superstructure details | Capacity | 6 CBM |
Box material | Carbon steel | |
Multi-way reversing valve | China famous brand | |
Hydraulic cylinder | China famous brand | |
Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate. | ||
Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc. | ||
Remark | Above specification is just for reference, please send us your detail request. | |
