Truck Description:
Garbage compactor truck,also called compactor garbage truck, garbage vehicle, waste compactor truck.
Function:
Garbage compactor truck. It is for household garbage .Box capacity is can customized from 4cbmto20cbm, Box material is carbon steel, It’s for garbage loading, compression, transportation and discharge; with special design, all dirty water goes to sewage tank, preventing re-pollution.
Advantage:
1:Garbage capacity: 4 CBM to 20 CBM (3 Tons to 15 Tons).
2:ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
3:High structural strength, ensure it long service life. Top level hydraulic system, convenient control system, manual and electrical.
4:Super reliable hydraulic system, German imported hydraulic valve, safety guaranteed.
5:High compression ratio.
Technical Specification:

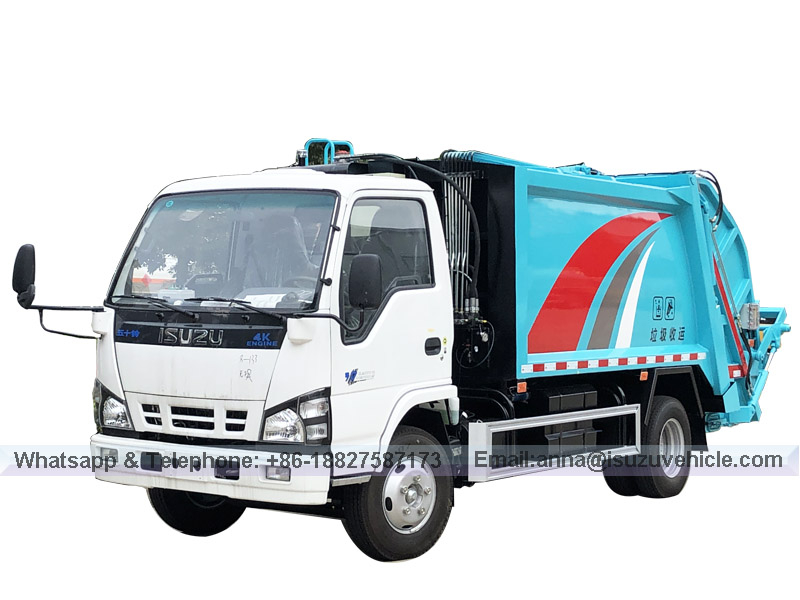

4-6CBM ISUZU Garbage Compactor Truck | ||
Vehicle Parameters | ||
General | GVW | 7300 kg |
Kerb Weight | 5600 kg | |
Overall dimension | 6650x2200x2680 (mmxmmxmm) | |
Chassis Parameters | ||
Cab | Cab seat | 3 seats |
Air conditioner | Equipped | |
Engine | Type of fuel | Diesel |
Engine brand | ISUZU | |
Emission standard | Euro V | |
Horse power | 130HP (96kw) | |
Displacement | 2999 cc | |
Chassis | Brand | ISUZU |
Drive type | 4x2 LHD or RHD | |
Transmission | 6 speed front, 1 reverse, Manual | |
Wheelbase/ No. of axles | 3360 mm / 2 | |
Tire No.(pcs) | 7.00-16/(6+1)pcs | |
Max Speed(km/h) | 105 km/h | |
Superstructure | ||
Superstructure details | Capacity | 6 CBM |
Box material | Carbon steel | |
Multi-way reversing valve | China famous brand | |
Hydraulic cylinder | China famous brand | |

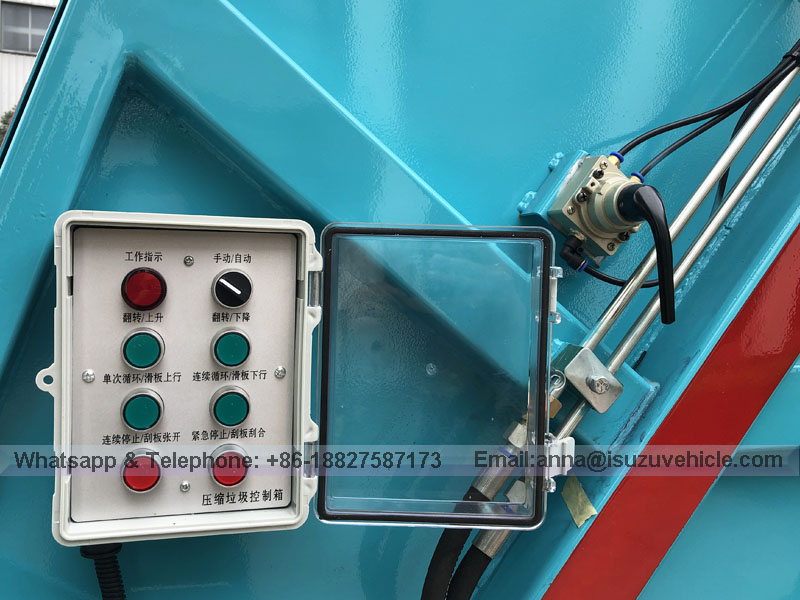

Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate. | ||
Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc. | ||
Remark | Above specification is just for reference, please send us your detail request. | |
