Truck Description:

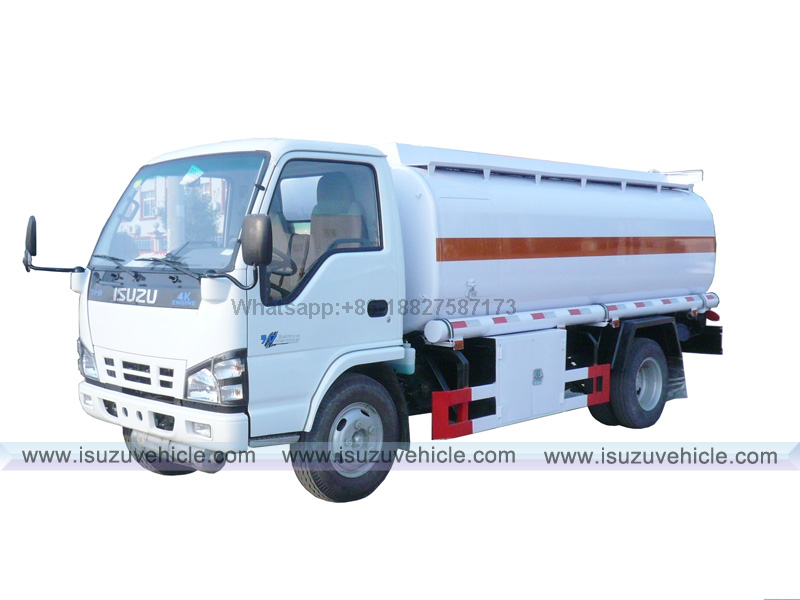

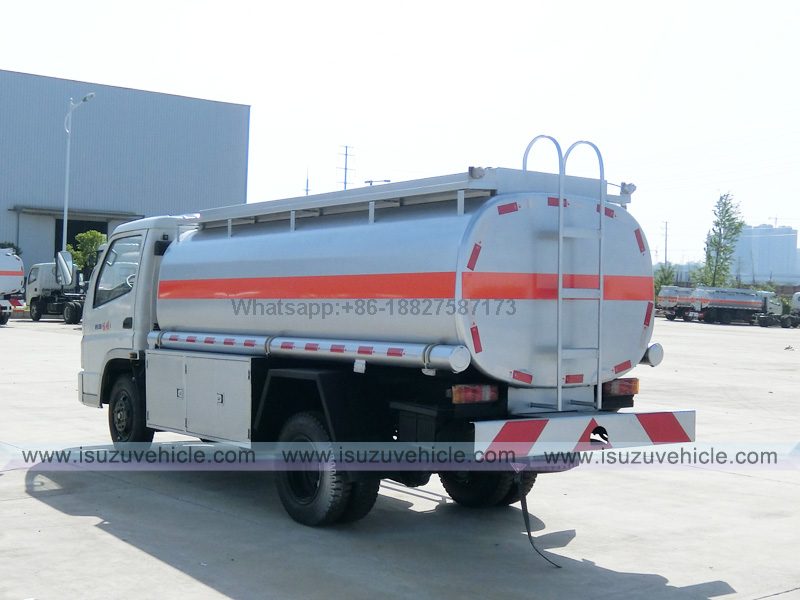

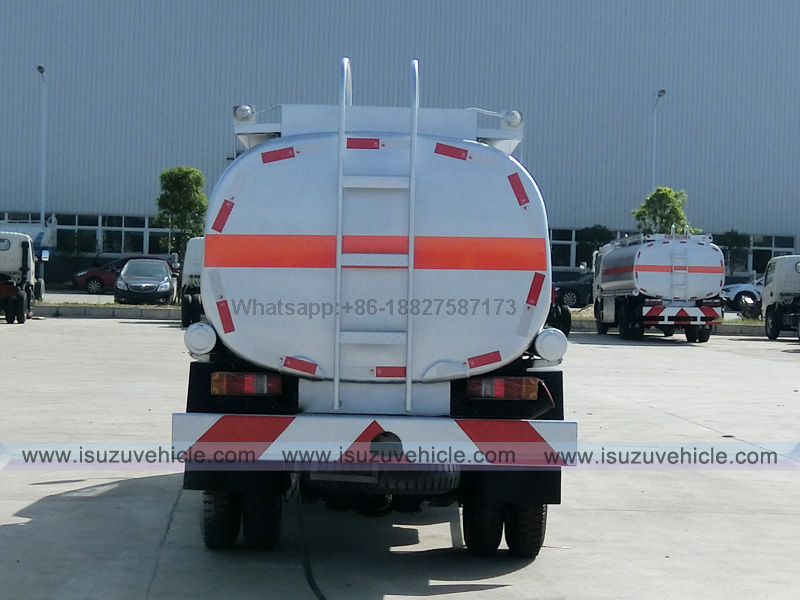

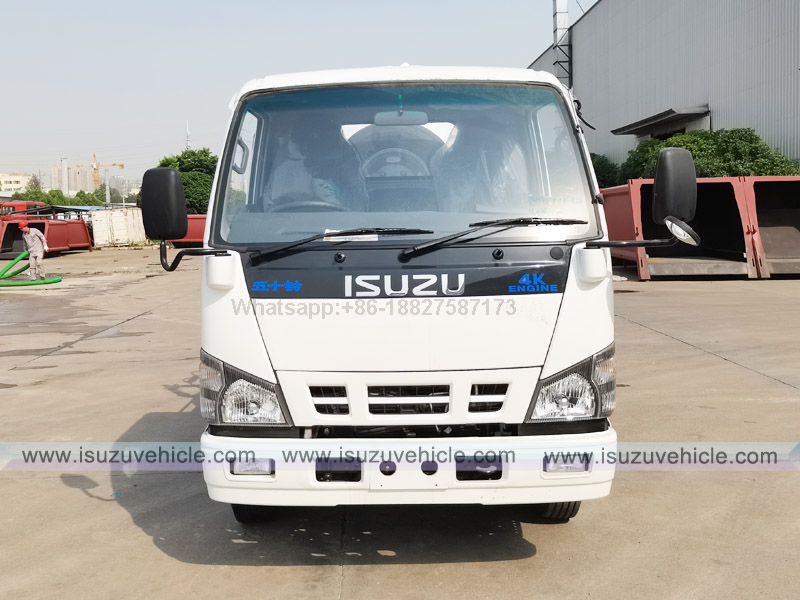

ISUZU 600P 5000 Liters Refuel Tank Lorry (also called oil tank truck, diesel tank truck, fuel dispensing tanker, petrol truck tanker, oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc .
Advantage:
1: ISUZU Brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance.
2:High tank strength, The front and rear sealing heads of the tank are pressed by hydraulic expansion machine, treated by the edge spinning machine, with slight deformation, able to effectively ensure the overall strength and service life of the tank.
Technical Description：
It mainly consist of chassis, tank body, power takeoff, fuel pump and so on. By the way, the optional choice include the flow meter and fuel dispenser.
Also the fuel truck can be divided into some compartments to load with different fuel type, such as diesel, gasoline, crude oil and so on.
Parameter:
ISUZU 600P 5000 Liters Refuel Tank Lorry | ||
General | Chassis Brand | ISUZU |
Overall Dimension | 8000*2100*3300 mm | |
GVW / Kerb Weight | 8000kg / 3,300kg | |
Cab | Cab Capacity | 2persons allowed |
Air Conditioner | Air conditioner is equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 120Ps (88KW) | |
Displacement | 2999 | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, left or right hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 7.00R16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 80 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 5,000 Litres (About 1320gallons) |
Tank Material | Carbon steel | |
Pump | Equipped for overhead delivery, 500 litres / min | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, inlet, discharge…….. | ||
Optional | Stainless steel material, flow meter or fuel dispenser. | |
Truck Description:
ISUZU 600P 5000 Liters Refuel Tank Lorry (also called oil tank truck, diesel tank truck, fuel dispensing tanker, petrol truck tanker, oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc .
Advantage:
1: ISUZU Brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance.
2:High tank strength, The front and rear sealing heads of the tank are pressed by hydraulic expansion machine, treated by the edge spinning machine, with slight deformation, able to effectively ensure the overall strength and service life of the tank.
Technical Description：
It mainly consist of chassis, tank body, power takeoff, fuel pump and so on. By the way, the optional choice include the flow meter and fuel dispenser.
Also the fuel truck can be divided into some compartments to load with different fuel type, such as diesel, gasoline, crude oil and so on.
Parameter:
ISUZU 600P 5000 Liters Refuel Tank Lorry | ||
General | Chassis Brand | ISUZU |
Overall Dimension | 8000*2100*3300 mm | |
GVW / Kerb Weight | 8000kg / 3,300kg | |
Cab | Cab Capacity | 2persons allowed |
Air Conditioner | Air conditioner is equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 120Ps (88KW) | |
Displacement | 2999 | |
Emission Standard | Euro V | |
Chassis | Drive Type | 4X2, left or right hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 7.00R16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 80 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 5,000 Litres (About 1320gallons) |
Tank Material | Carbon steel | |
Pump | Equipped for overhead delivery, 500 litres / min | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, inlet, discharge…….. | ||
Optional | Stainless steel material, flow meter or fuel dispenser. | |
