Truck Description:
Garbage compactor truck(also called waste compactor truck, garbage truck, bin trucks, waste compactor, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.
Advantage:
1: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
2: High pressure, good sealing, convenient operation and safety.
3: High compression ratio and large loading capacity.
4: Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.
5: Compression body capacity from 4 to 18 CBM
6: Various types of refuse container lifer are available.
Technical Specification:

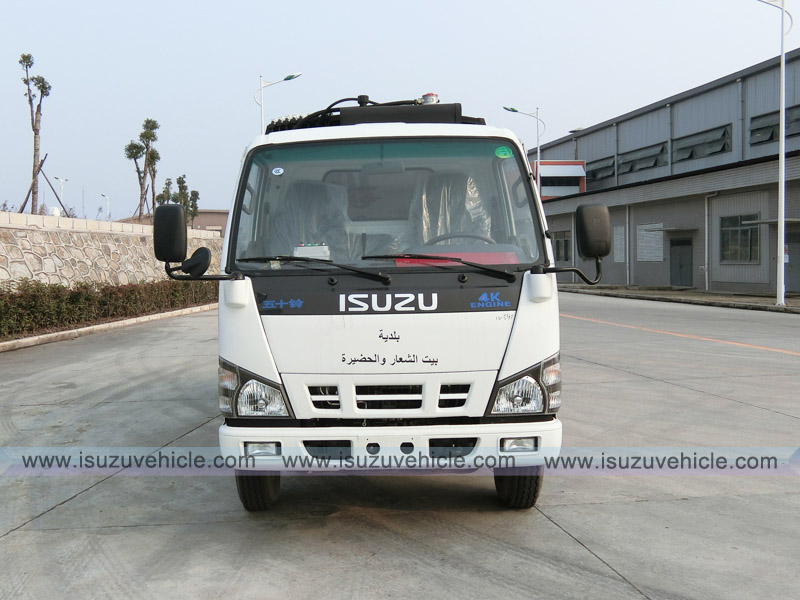

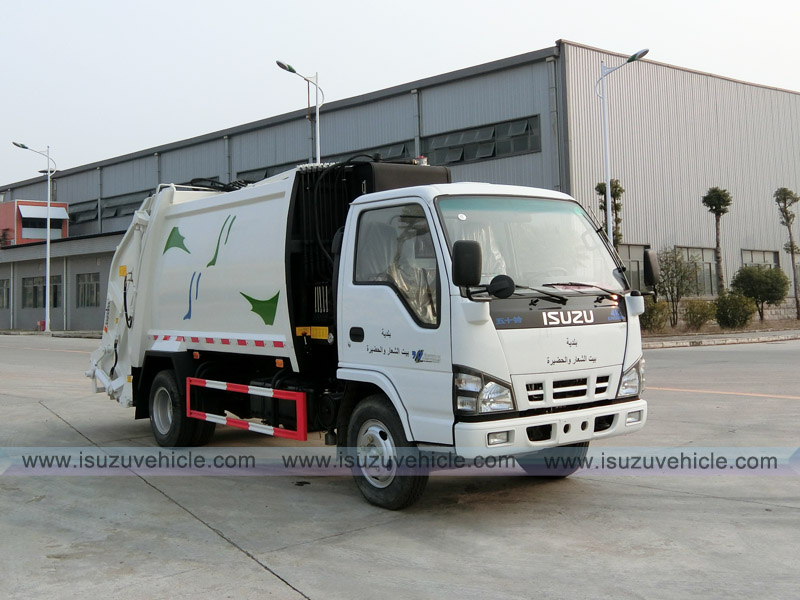

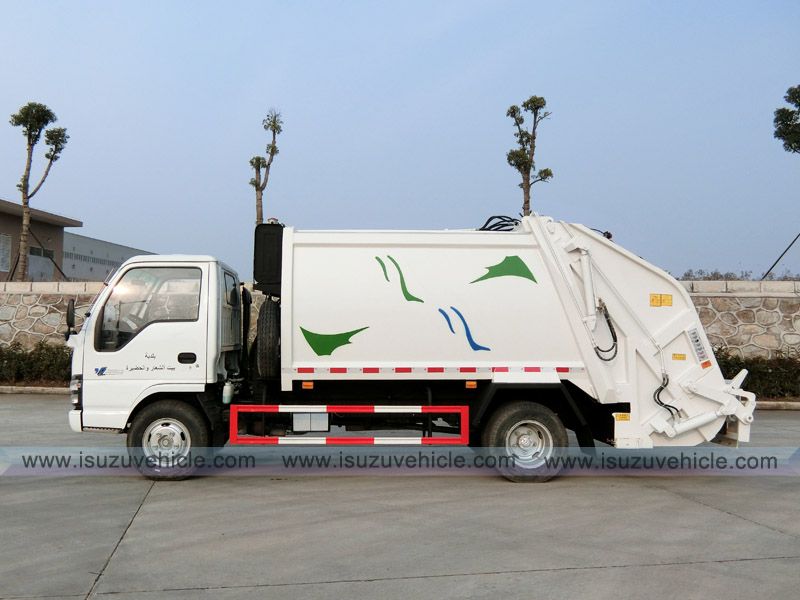

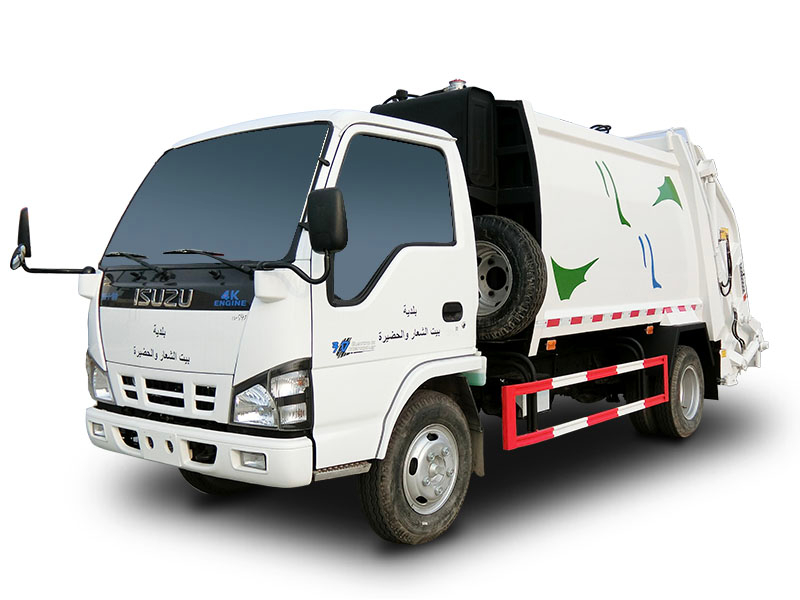

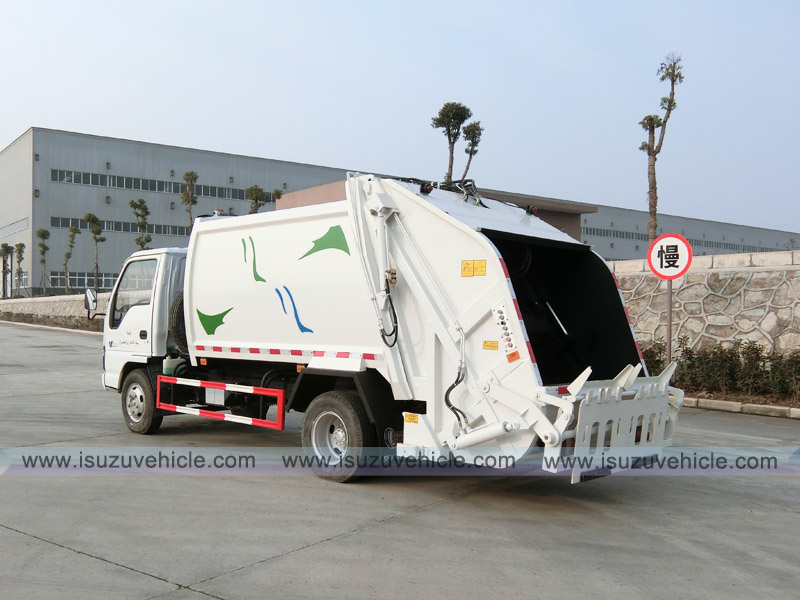

6CBM ISUZU Garbage Compactor Truck |
||
Vehicle Parameters |
||
General |
GVW |
7300 kg |
Kerb Weight |
5600 kg |
|
Overall dimension |
6650x2200x2680 (mmxmmxmm) |
|
Chassis Parameters |
||
Cab |
Cab seat |
3 seats |
Air conditioner |
Equipped |
|
Engine |
Type of fuel |
Diesel |
Engine brand |
ISUZU |
|
Emission standard |
Euro IV |
|
Horse power |
120HP (88kw) |
|
Displacement |
2999 cc |
|
Chassis |
Brand |
ISUZU |
Drive type |
4x2 LHD |
|
Transmission |
6 speed front, 1 reverse, Manual |
|
Wheelbase/ No. of axles |
3360 mm / 2 |
|
Tire No.(pcs) |
7.00-16/(6+1)pcs |
|
Max Speed(km/h) |
105 km/h |
|
Superstructure |
||
Superstructure details |
Capacity |
6 CBM |
Box material |
Carbon steel |
|
Multi-way reversing valve |
China famous brand |
|
Hydraulic cylinder |
China famous brand |
|
Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate. |
||
Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc. |
||
Remark |
Above specification is just for reference, please send us your detail request. |
|
