Truck Description:

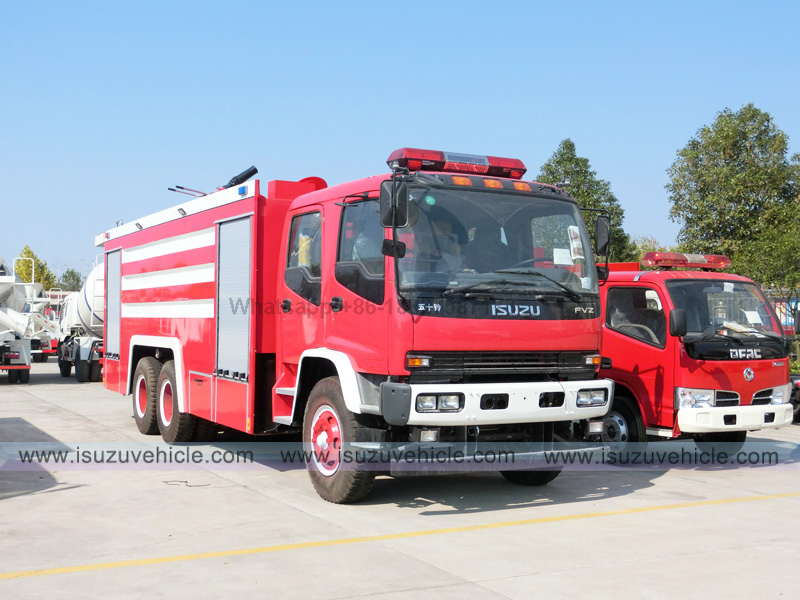

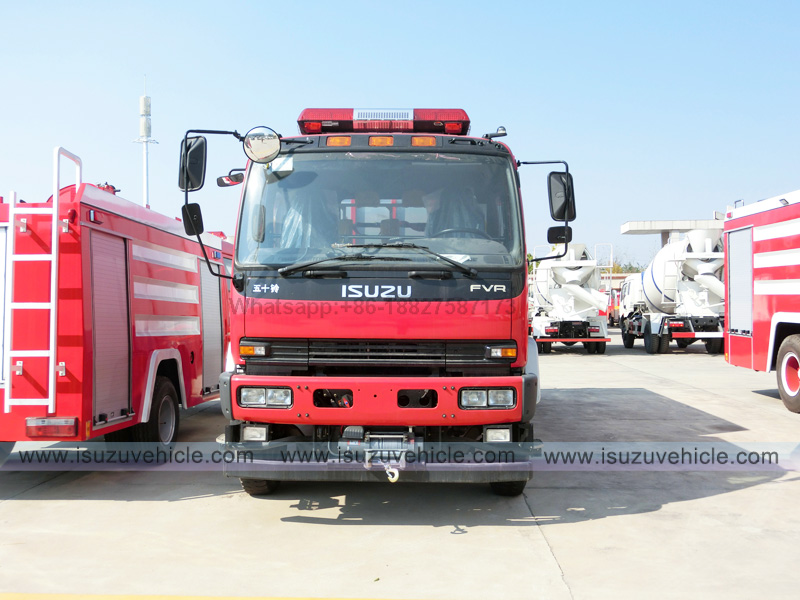

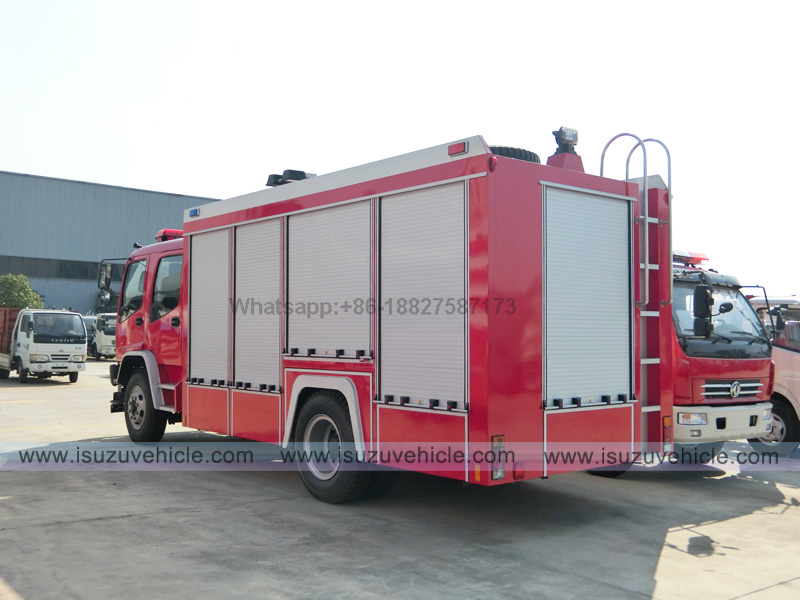

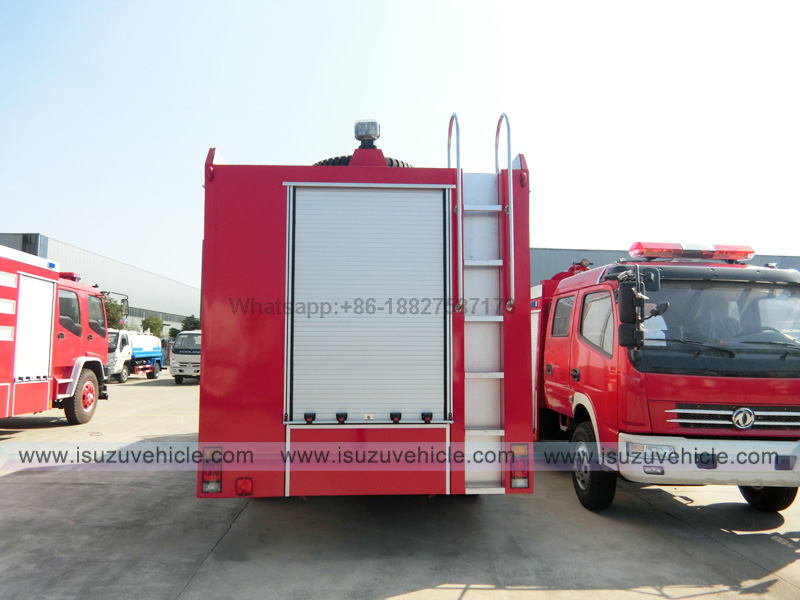

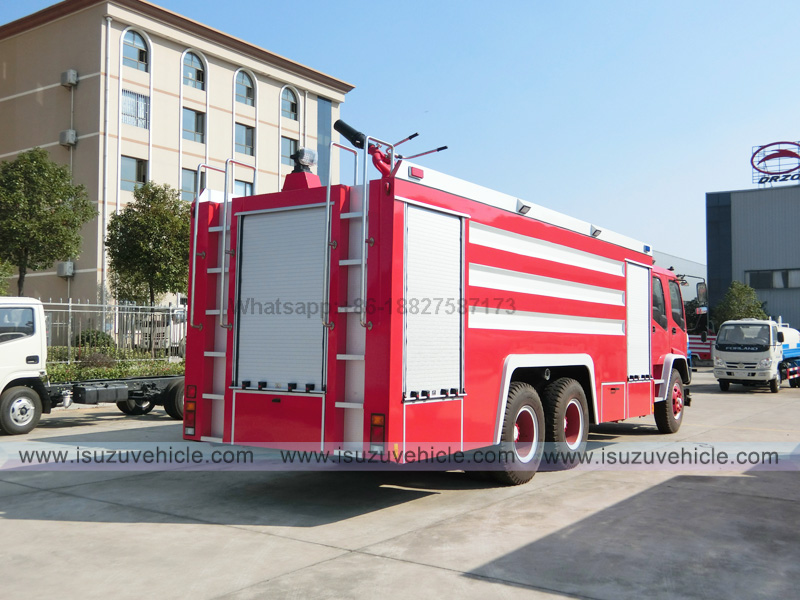

ISUZU Fire engine (also called as fire fighting engine, fire fighting vehicle, fire fighting equipment, foam fire truck, fire extinguishing truck, fire-extinguishing foam truck) is a vehicle equipped top brand fire pump and equipment can fire extinguishing efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Features:
1.Water type or foam/water or Water foam dry powder combination type.
2.Highly efficient for fire extinguishing.
3:Super powerful fire pump & fire cannon.
4:A complete set of fire service implements.
Advantage:
1: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance.
2: The main frame structure is welded by high quality square tube. Roof is non-slip and can walk.
3: Aluminum alloy rolling shutters are arranged on both sides of the equipment box, and there are lights inside.
4: Long row of warning lights installed on the top of the cab; power 100W; one light above the rear of the vehicle.
5: Crew room; equipment box and pump room set lighting.
6: Drive type:4x2,4x4,6x4,6x6,8x4.
Technical Specification:
Fire Engine ISUZU (7,000 Litres) |
||
| General | Chassis Brand |
ISUZU |
Overall Dimension |
8800 x 2500 x 3800 mm |
|
GVW / Kerb Weight |
16,950kg / 8,900kg |
|
Cab |
Cab Capacity |
2+4 persons allowed |
Air Conditioner |
With air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
ISUZU engine, 6HK1-TCNG40 |
|
Power |
240 Ps (177 KW) |
|
Displacement |
7790 ml |
|
Emission Standard |
Euro V |
|
Chassis |
Drive Type |
4X2, left hand drive |
Transmission |
ISUZU MLD gear box, 6-speed forward, 1 reverse |
|
Wheelbase/No. of axle |
4700 mm / 2 |
|
Tyre Specification |
10.00-20 |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
85 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Water Capacity |
5,000 Litres (About 1,300 gallons) |
Foam Capacity |
2,000 Litres (About 500 gallons) |
|
Tank Material |
Carbon steel |
|
Fire Pump |
60 L/s ( Pressure: 1.0 M Pa) |
|
Flow Speed |
48 L/s ( Pressure: 1.0 M Pa) |
|
Shot |
Water ≥ 60 m & Foam ≥ 55 m |
|
Suction Head |
6 m |
|
Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include ladders, pike poles, axes and cutting equipment, halligan bars, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus and general tools.… |
||
Optional |
Ladders, floodlights... |
|
Contact |
If you need the quotation list: Please add my whatsapp: +86-18827587173 Or send me by email: anna@isuzuvehicle.com, annacntruck@gmail.com |
|
