| Quantity: | |
|---|---|
Keywords:

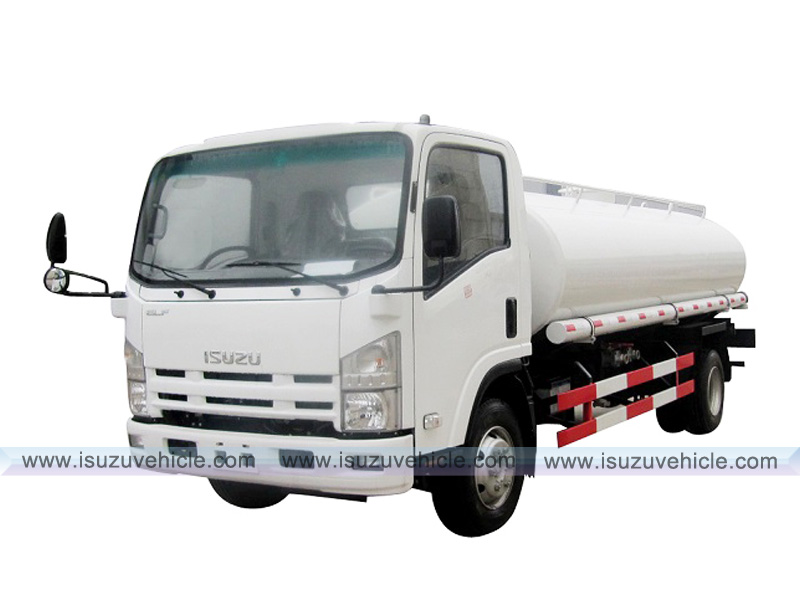

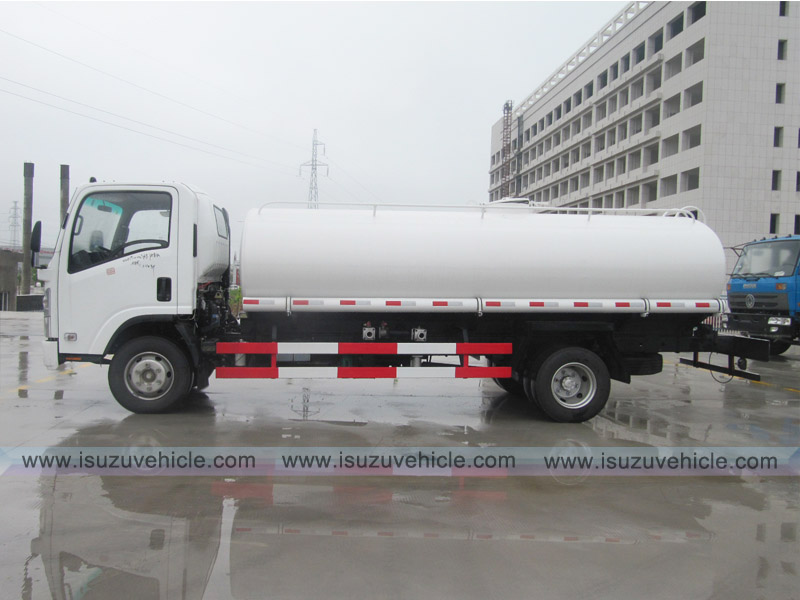

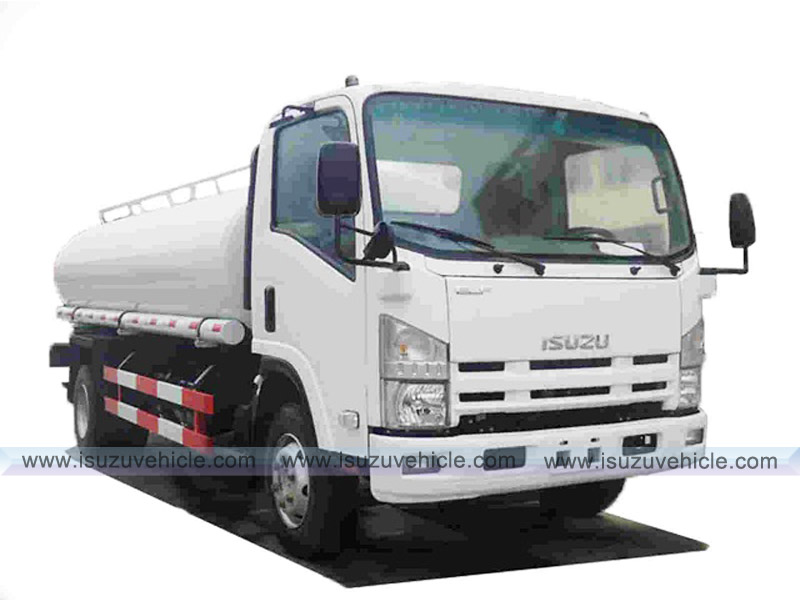

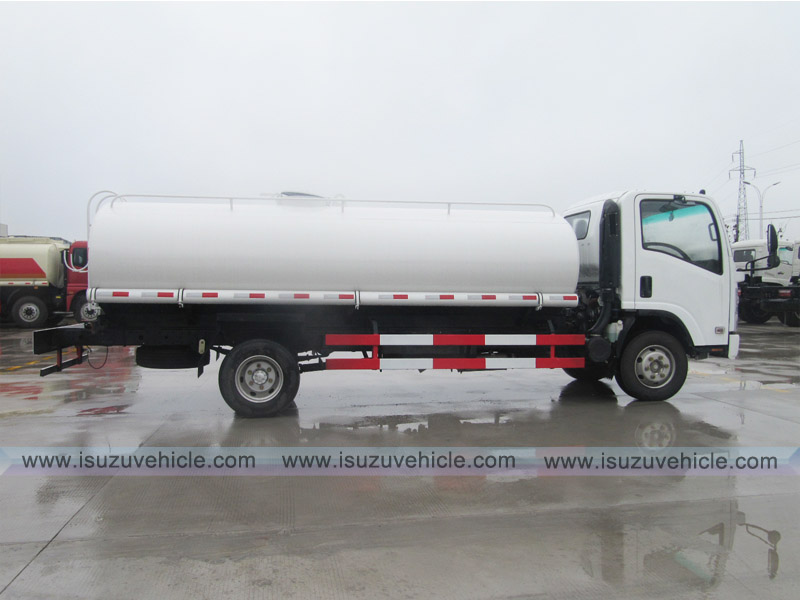

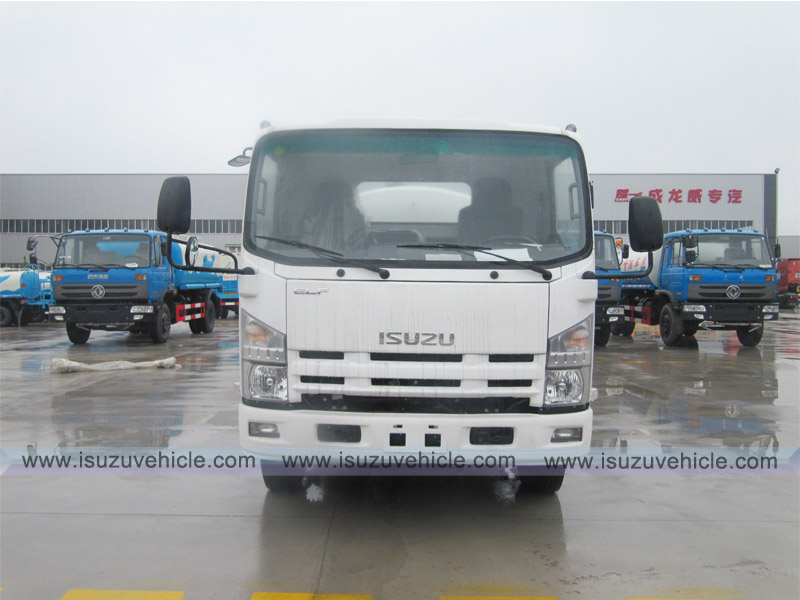

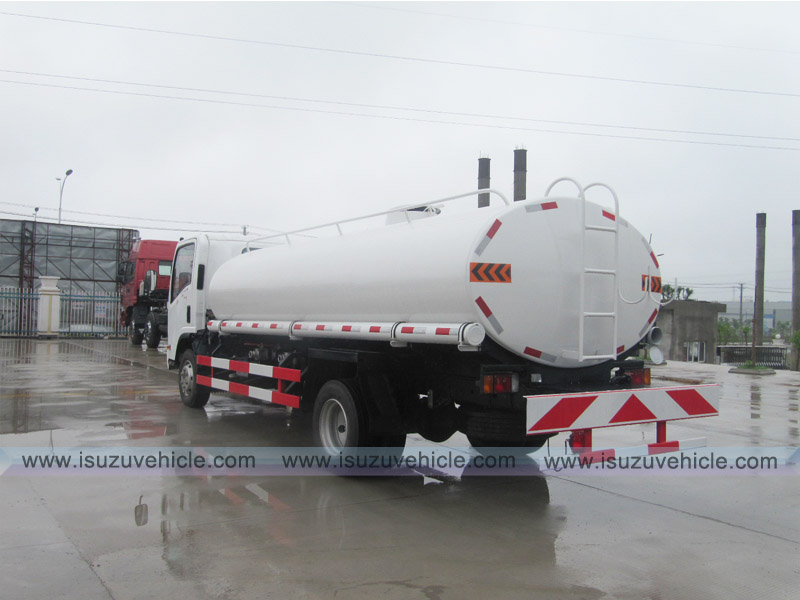

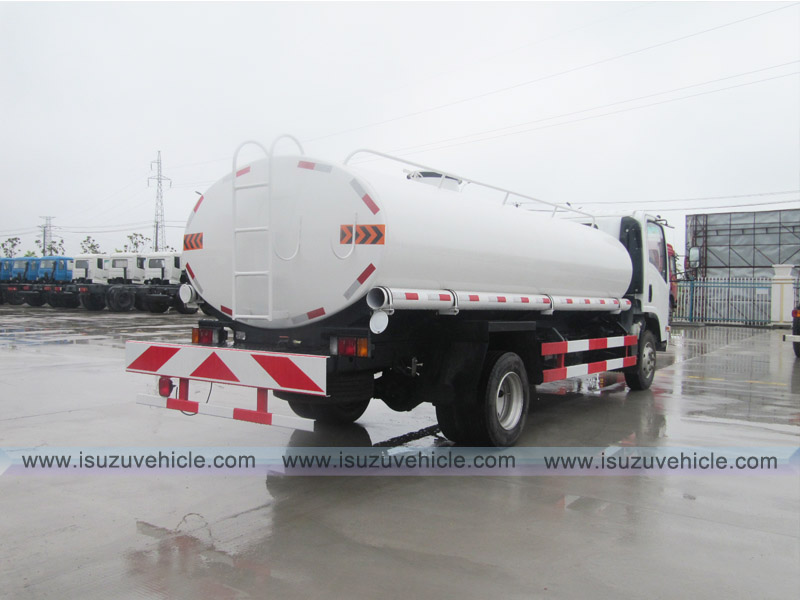

Water Tank Truck (Also called water tanker truck, water tank lorry, mobile water truck, water tank, water bowser truck, water truck sprinkler, drinkable water truck) is used for water transport, or water sprinkling, and it is widely used in construction engineering, farm irrigation, water sale business.
Truck Description:
With non-toxic treatment inside tank or made of stainless steel, the water tank truck can be used for transporting drinking water, called as potable water truck, safe for human body.
Water truck with water pump, water sprayer, water cannon, front flush, rear sprinkle, side spray, to sprinkle and clean roads streets, re-dust, this kind truck called water spraying truck, water sprinkler truck.
Advantage:
1: ISUZU chassis, perfect performance
2: ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
3: Nice shape, rational structure
4: Water pump super powerful, efficient pump in and out
5: Massive, durable, perfect performance
6: Prolonged service life.
Structural Features:
1: Special chassis, reasonable structure and excellent performance.
2: Square circle tank body.
3: Thank automatic panel welding, one roll forming, excellent performance.
4: Powerful and outstanding performance.
Technological Parameter:
ISUZU Water Tank Truck (8,000 litres) |
||
General |
Chassis Brand |
ISUZU |
Overall Dimension |
7430 * 2200 * 2410 mm |
|
GVW / Kerb Weight |
10,055kg / 3,855kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
W/ air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
ISUZU engine, 4HK1 |
|
Power |
190Hp (140KW) |
|
Displacement |
5193 ml |
|
Emission Standard |
Euro IV |
|
Chassis |
Drive Type |
4X2, left hand drive |
Transmission |
ISUZU gear box, no overhaul within 500,000km |
|
Wheelbase/No. of axle |
4175 mm / 2 |
|
Tyre Specification |
235/75R17.5 |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
110 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Tank Capacity |
8,000 Litres ( 2,640gallons) |
Tank Material |
Carbon steel |
|
Flow Speed |
1000 litres / min |
|
Lift |
90 m |
|
Suction Head |
6 m |
|
Optional |
Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. |
|
