Truck Description:
Truck Fuel Tank (also called oil tank truck, diesel tank truck, fuel dispensing tanker, petrol truck tanker, oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc .
Advantage:
1: Chinese top brand IVECO chassis, perfect performance,IVECO engine, super powerful, reliable performance.
2: Professional configuration, Install the aluminum alloy folding guardrails and die stamping & non-slip ladders, to reduce the weight of the vehicle, and improve the product quality.
3: This product has reasonable structure, reliable performance, beautiful appearance,And simple operation etc. merit.
4: Advanced process, The jointed board welding line of tank is treated by the automatic beveling machine, adopts the primary forming of the automatic splicing welding machine, and accepts the non-destructive ray test, which ensures the quality and straightness of the welding line, and makes the welding line surfaces smooth and beautiful.
Technical Description

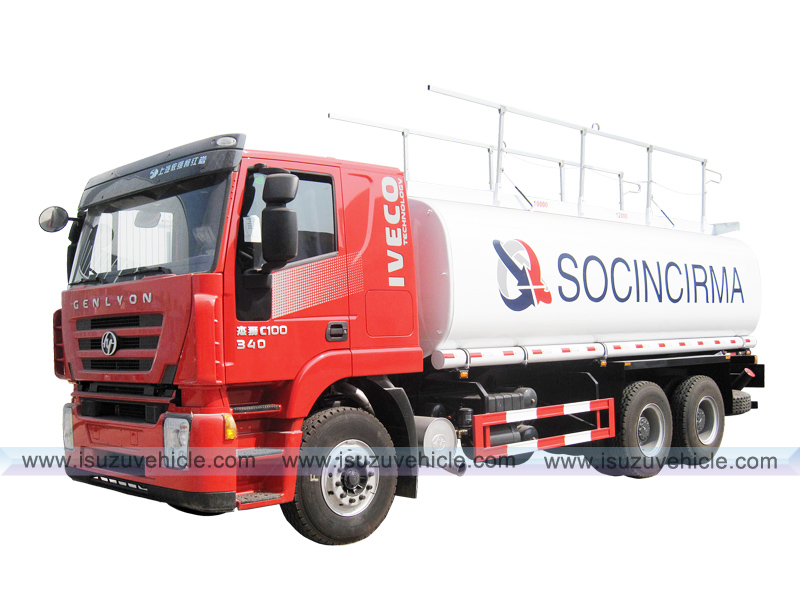

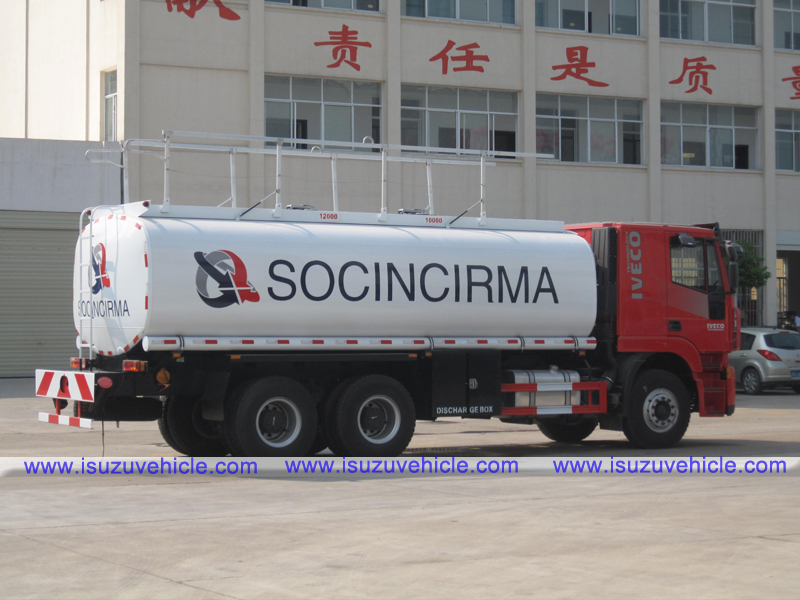

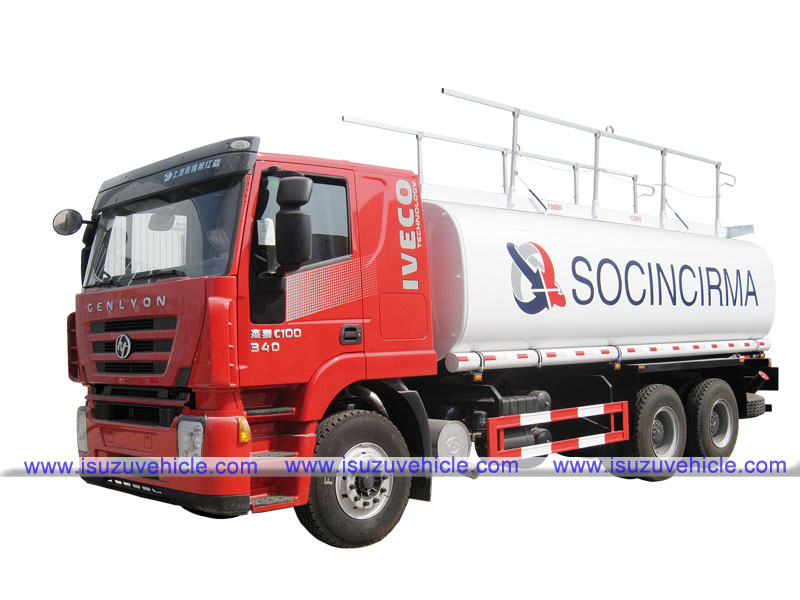

IVECO 22,000 Liters Truck Fuel Tank | ||
General | Chassis Brand | IVECO |
Overall Dimension | 99000 x 2500 x 3350 mm | |
GVW / Kerb Weight | 25,000 kg / 10,530 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is optional | |
Engine | Fuel Type | Diesel |
Engine Brand | Fiat engine | |
Power | 310 Ps (228 KW) | |
Displacement | 8709 ml | |
Emission Standard | Euro III | |
Chassis | Drive Type | 6X4, left or right hand drive |
Transmission | 10-speed front, 1 reverse | |
Wheelbase/No. of axle | 4325+1350 mm / 3 | |
Tyre Specification | 315/80R22.5 | |
Tyre Number | 10 tyres and 1 spare tyre | |
Max Speed | 80 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 22,000 Litres (About 5,800 gallons) |
Tank Material | Carbon steel | |
Pump | Equipped for overhead delivery, 1000 litres / min, with Flow meter and15m reel hose | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
Optional | Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… It can be divided into many compartments. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… Heat preservation & heating system could be added. Bottom loading system can be equipped. | |
