Truck Description:

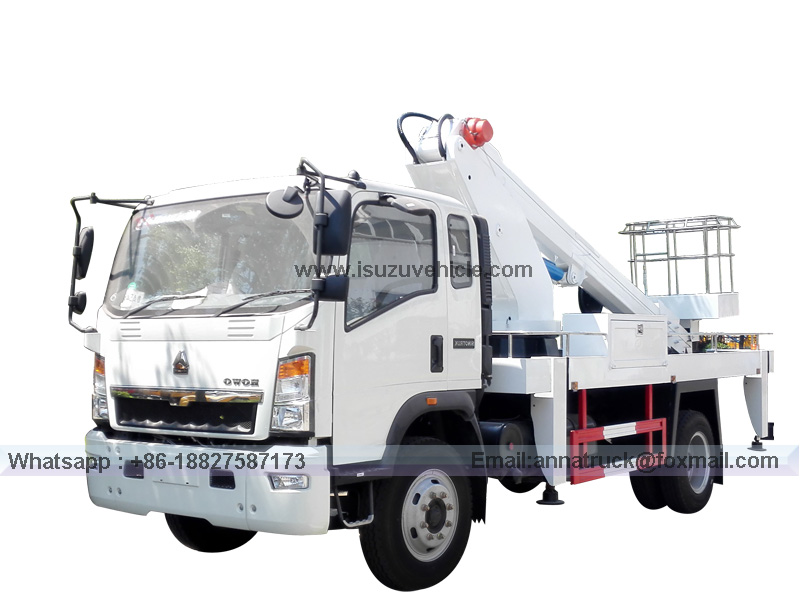

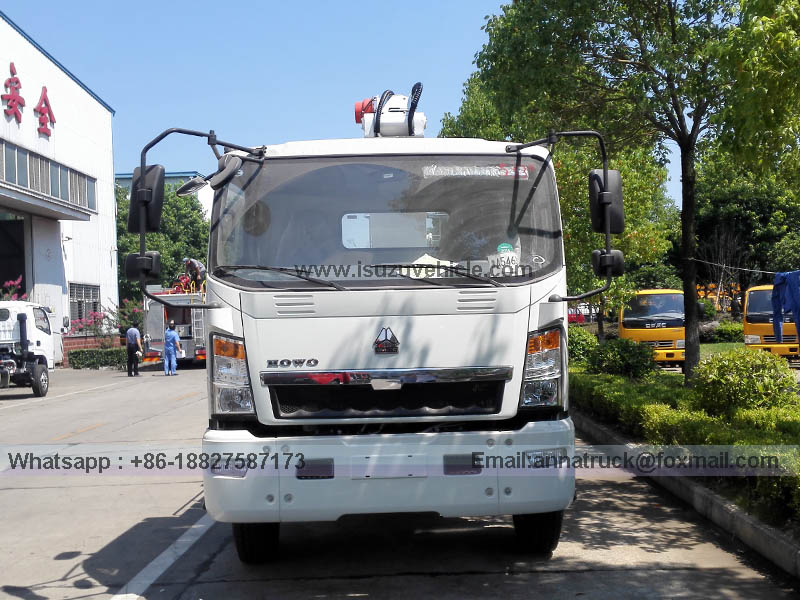

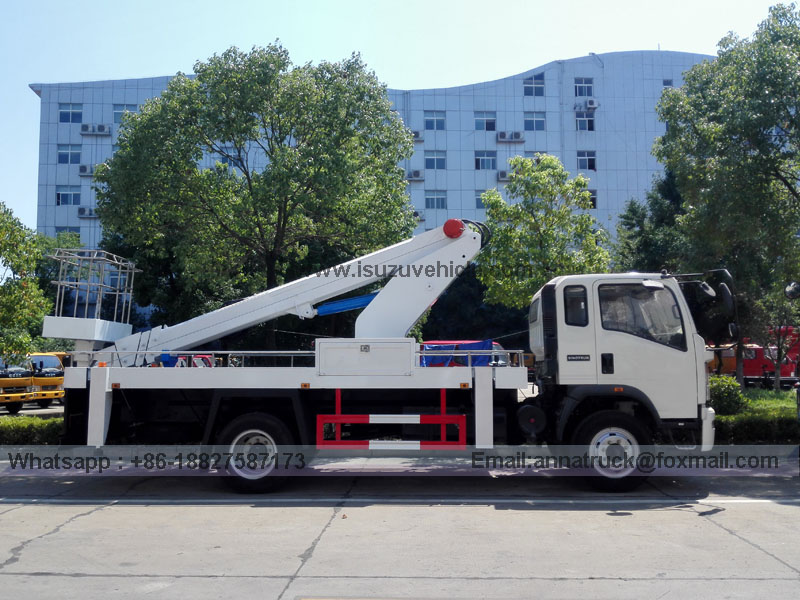

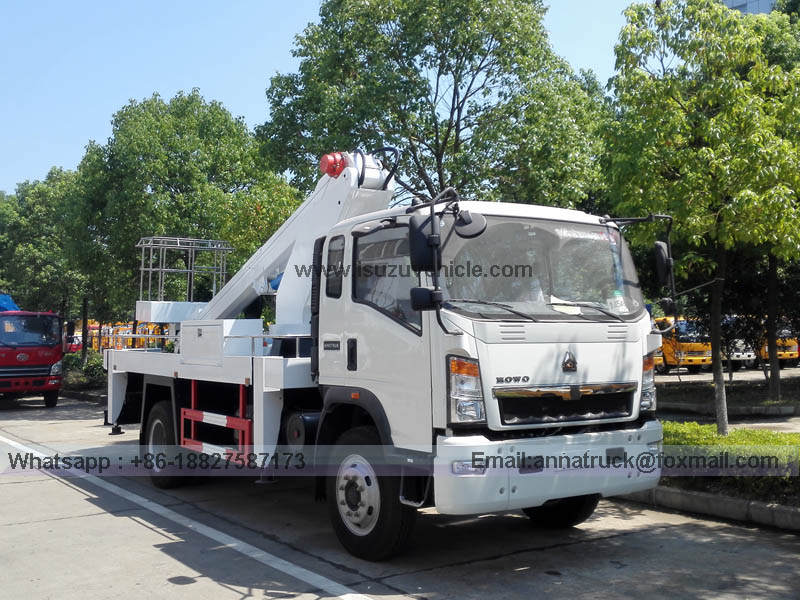

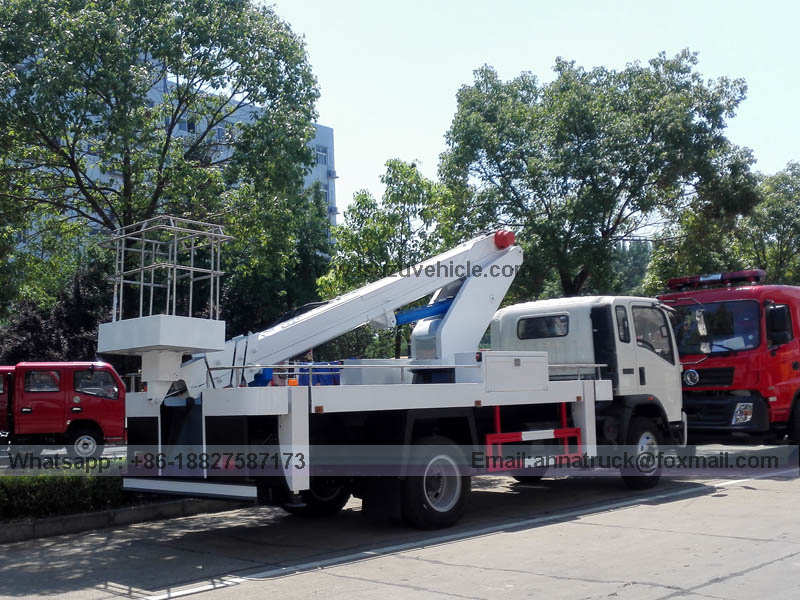

Telescopic Boom Aerial Working Vehicle (also called as hydraulic beam lifters, aerial platform operation truck, aeri

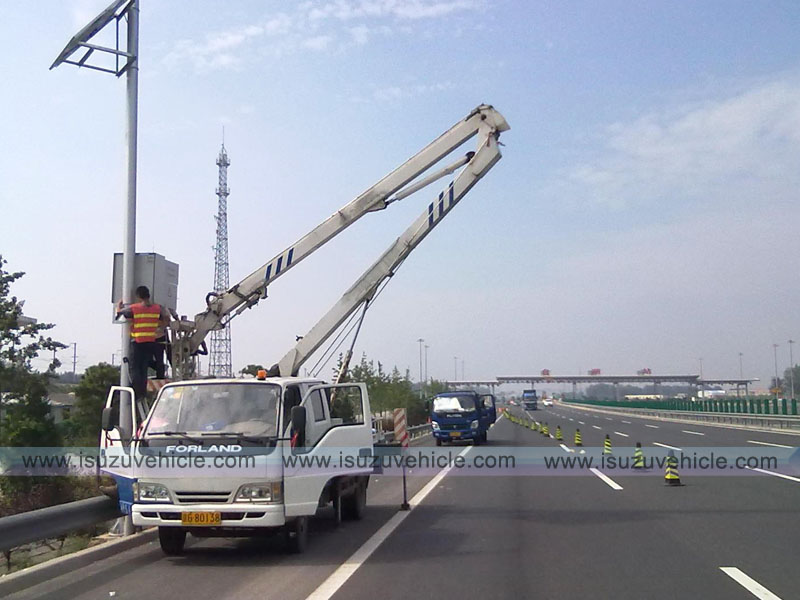

al working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.
Advantage:
The design of this aerial work vehicle takes full account of safety factors. During the operation, the legs need to be lowered to ensure the balance of the vehicle, and the operation handle should be smooth to avoid excessive inertial swing causing accidents. At the same time, when lifting the operating platform, the staff must ensure that the upper and lower arms alternate and maintain the best increase radius state. In addition, the personnel on the operating bucket (platform) must fasten the safety belt and strictly comply with the technical parameters and operating scope stipulated by the equipment.
Technical Specification:
SINOTRUK 12-18 M Aerial Working Truck | |||
General | Chassis Brand | SINOTRUK HOWO | |
Overall Dimension(mm) | 6880x5755x6880 | ||
GVW/Curb Weight(kg) | 6080/5755 | ||
Cab | Cab Seat | 2+3 | |
Air Conditioner | Equipped | ||
Engine | Fuel Type | diesel | |
Engine Brand | SINOTRUK | ||
Power(kw/hp) | 116 Ps(85kw) | ||
Displacement(L) | 3.760 | ||
Emission Standard | Euro III | ||
Chassis | Drive Type | 4*2 , LHD and RHD | |
Transmission | 6 forward gears&1reverse | ||
Wheelbase(mm) | 3360 / 2 | ||
Tire Specification | 7.00R16 | ||
Tire No.(pcs) | 6+1 | ||
Max Speed(km/h) | 95 | ||
Paint | Metallic paint | ||
Aerial Platform Structure Parameters | |||
Cage rated capacity | 200 kg | ||
Working height | 18-33m | ||
Max. out reach(m) | 11 | ||
Max lifting weight (kg) | 1000 | ||
Rotating speed | 0-2r/min | ||
The whole boom outreaching time | ≦30s | ||
Emergency system | optional | ||
Contact | Ms. Anna Whatsapp & Telephone: +86-18827587173 Email: annatruck@foxmail.com | ||
