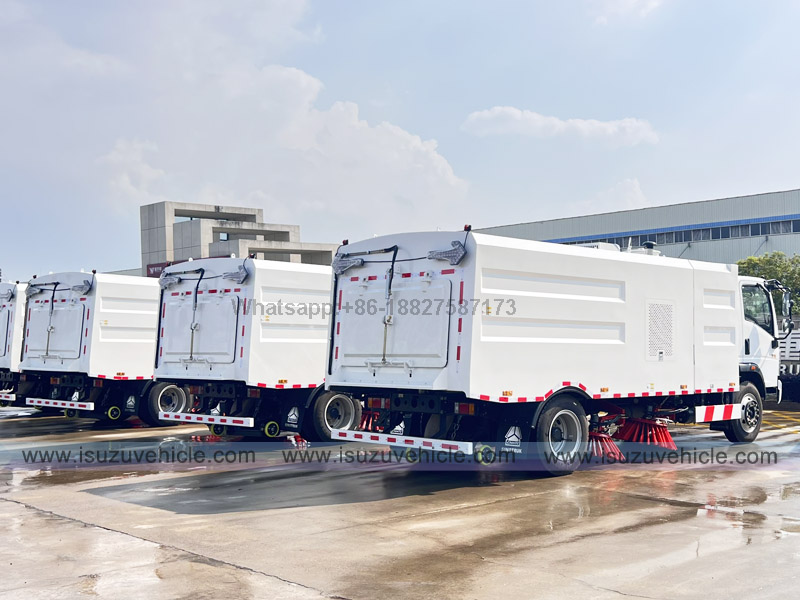

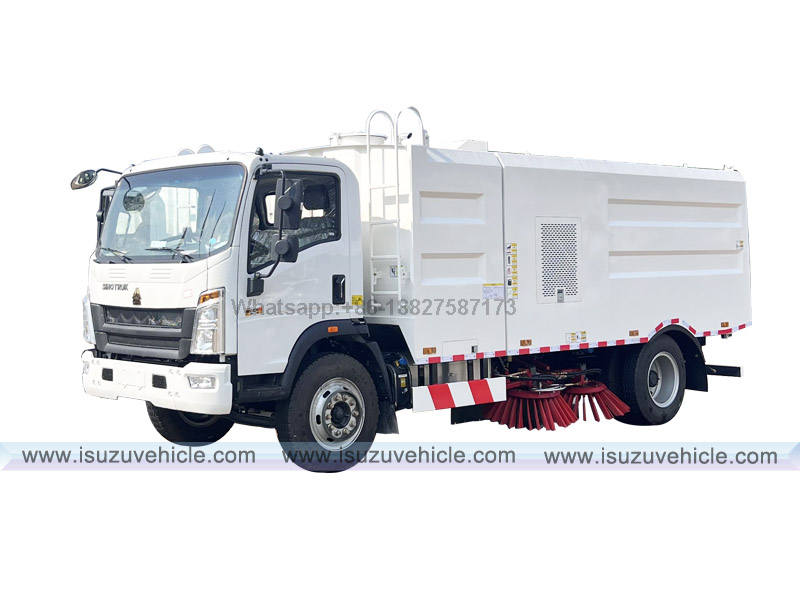

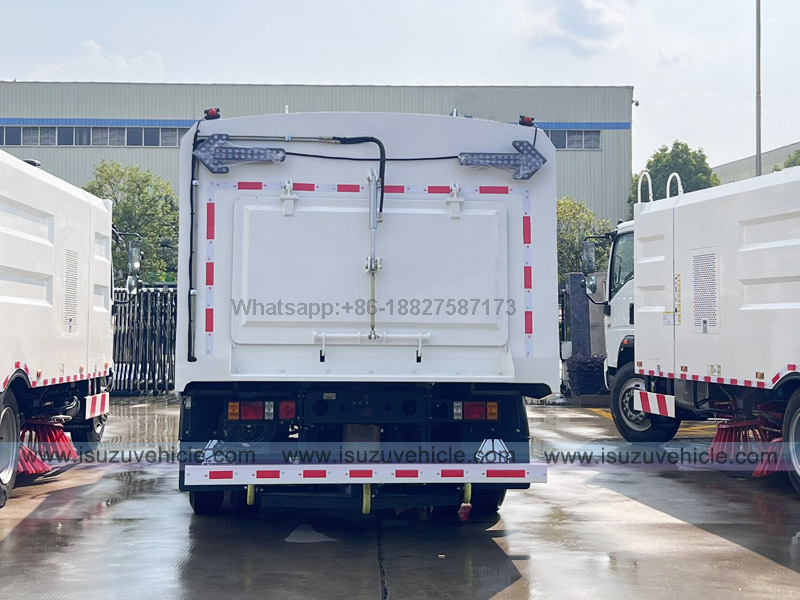

Road Sweeper Vehicle (also called road sweeping truck, road sweeper, street sweeper, street cleaning truck, municipal vehicle, sweeping vehicle) is kind of vacuumed type truck mounted road sweeping machine, it is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.
Advantage:
They use powerful suction to remove all kinds of garbage from the road. Whether it is large debris or small particles, the vacuum cleaner can easily deal with it. This model is especially suitable for cleaning finer waste, such as cigarette butts or sand particles, to ensure that the road is thoroughly clean
Features:
1:The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, sweeping system, suction system, water sprinkling system, hydraulic system, etc.
2: SINOTRUK HOWO Chassis and engine, powerful, reliable performance, no overhaul with 100,000 km.
3: Large cleaning width, low oil consumption, easy operation.
4: Dustbin and water tank are made of stainless steel.
Technology:
Road Sweeper Machine(4cbm dustbin and 1500 Liters water tank) | ||
Vehicle details | ||
GVW | 8,400 kg | |
Kerb Weight | 6,900kg | |
Overall dimension | 7200x2200x2800 (mmxmmxmm) | |
Cab | Cab capacity | 2 persons' seat with air condition |
Chassis | ||
Chassis brand | SINOTRUK HOWO | |
Drive Type | 4X2, Left hand drive | |
Fuel Type | Diesel | |
Engine Make | MAN engine | |
Horse power | 180 HP | |
Displacement | 4580 cc | |
Air conditioner | Equipped | |
Type of fuel | Diesel | |
Emission standard | EuroIV | |
Transmission | 10-speed forward, 2-reverse | |
Brake | Air Brake | |
No. of axles | 2 | |
Tyre | 9.00R20/(6+1)pcs | |
Max speed | 105 km/h | |
Paint | Automotive metallic paint | |
Superstructure details | ||
Water Tank Capacity | 1,500 Liters Carbon steel | |
Dustbin tank capacity | 4 cbm, Stainless steel | |
Max. suction particle | 120 mm | |
Min. clearance of suction nozzle | 200 mm | |
Cleaning capacity | 9000-60000(m2/h) | |
Max. Unloading angle | 45 degree | |
Sweep width | 3200 mm | |
Sweeper brush | 4 pcs | |
Auxiliary engine | JMC engine, (ISUZU technology),87HP (64KW) | |
