Description:

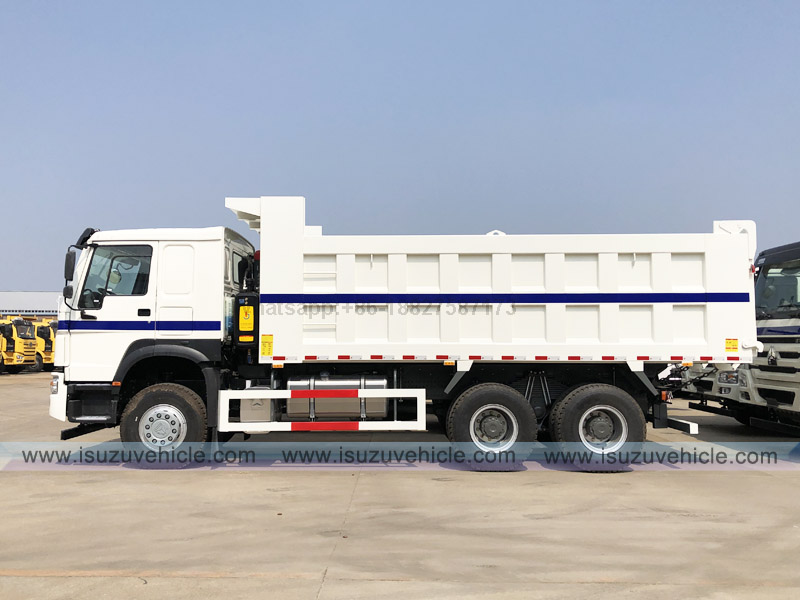

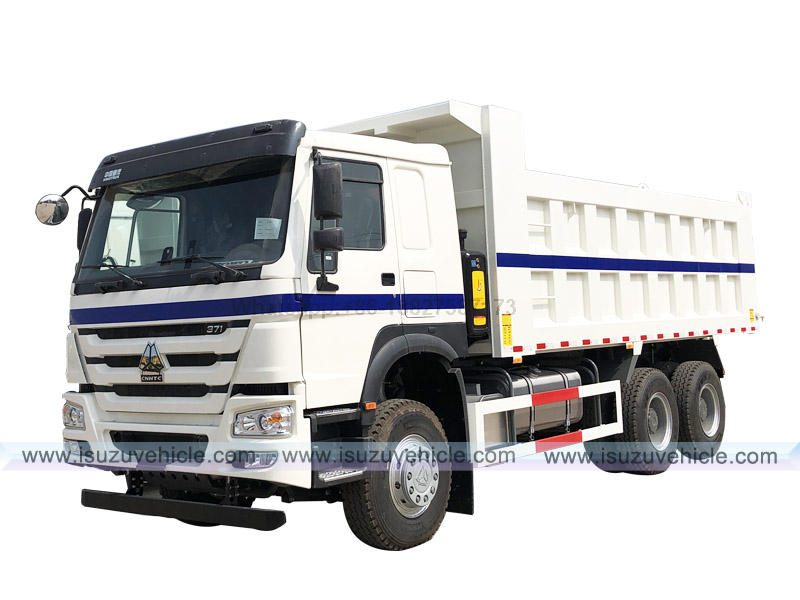

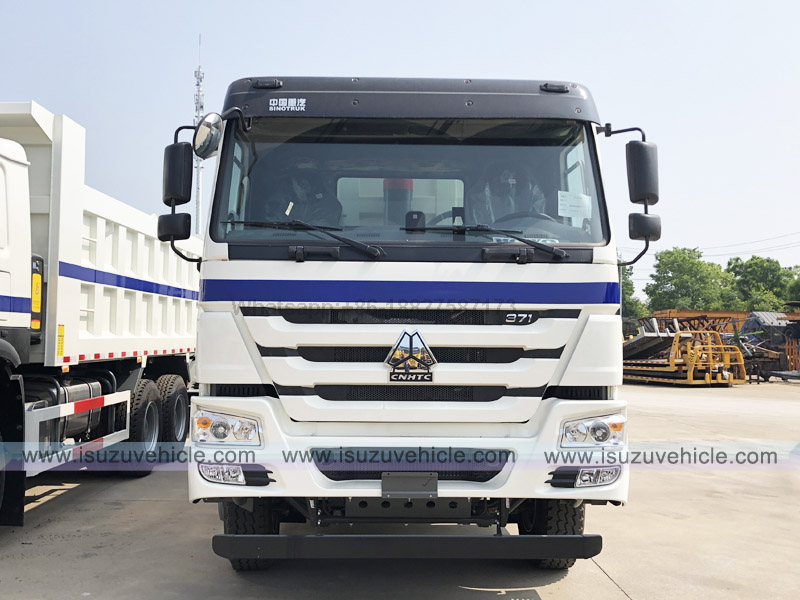

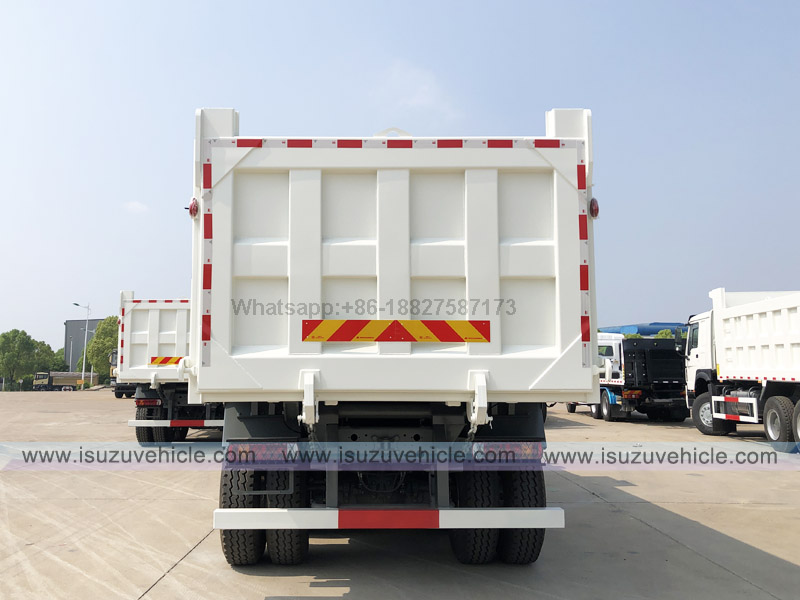

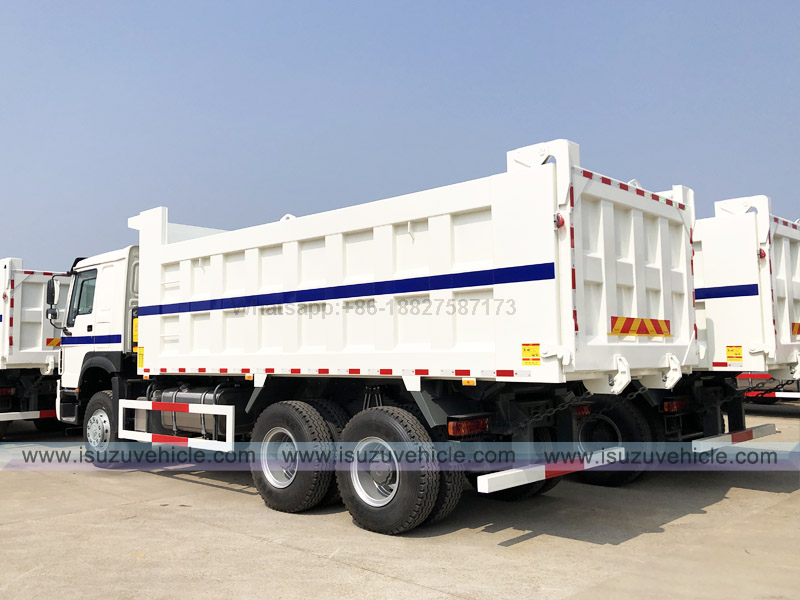

SINOTRUK HOWO Dump Truck (Also called tipper truck, dump tipper truck, dumping truck, IVECO tipper truck, sealing dump truck)is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on.
Features:
The 10 wheels 6X4 dump truck with 20-25 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Technical Parameters
SINOTRUK HOWO Dump Truck (Volume: 19 cbm) | ||
General | Chassis Brand | SINOTRUK China |
Overall Dimension | 8118 x 2500 x 3177mm | |
GVW / Kerb Weight | 25,000 kg / 12,560 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Weichai engine | |
Power | 400Hp (294KW) | |
Displacement | 9726 cc | |
Emission Standard | Euro II | |
Chassis | Drive Type | 6X4, left hand drive Or right hand drive |
Transmission | 10-speed front, 2 reverse | |
Wheelbase/No. of axle | 3800+1400 mm / 3 | |
Tyre Specification | 12.00R20 | |
Tyre Number | 10 tyres and 1 spare tyre | |
Max Speed | 80km/h | |
Paint | Metallic paint | |
Superstructure | Box Volume | 19 cbm |
Box Dimension | 5600 x 2300 x 1500 mm | |
Box Thickness | Side 6mm, Bottom 8mm | |
Hydraulic System | HYVA system, front lift, back tip | |
All other standard accessories: Tool kit, English manual | ||
