Truck Description:

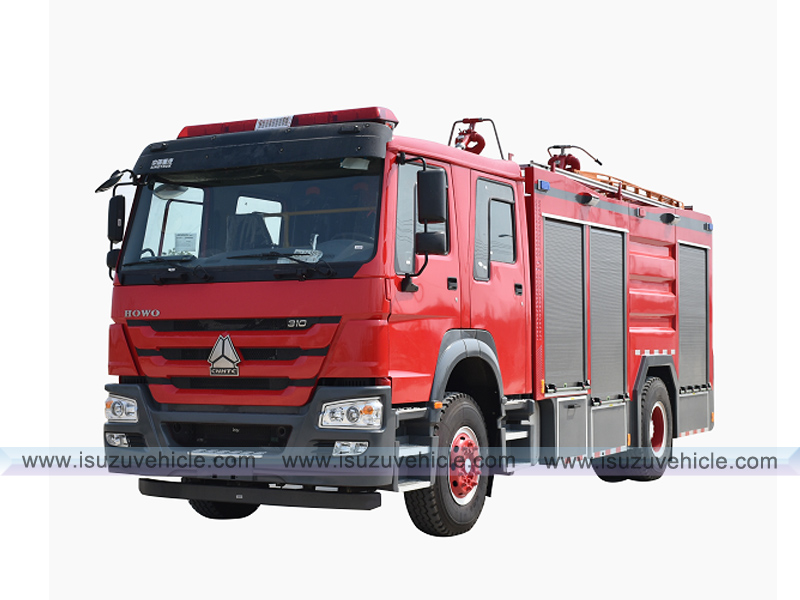

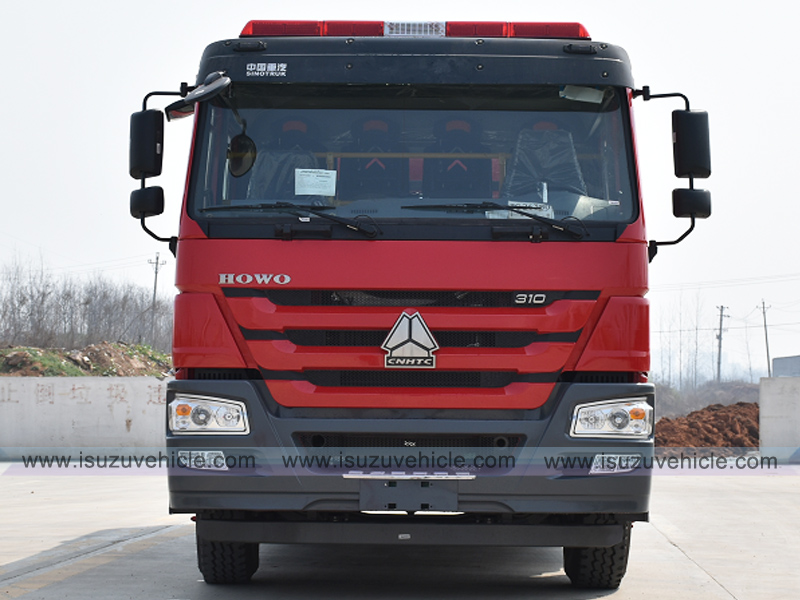

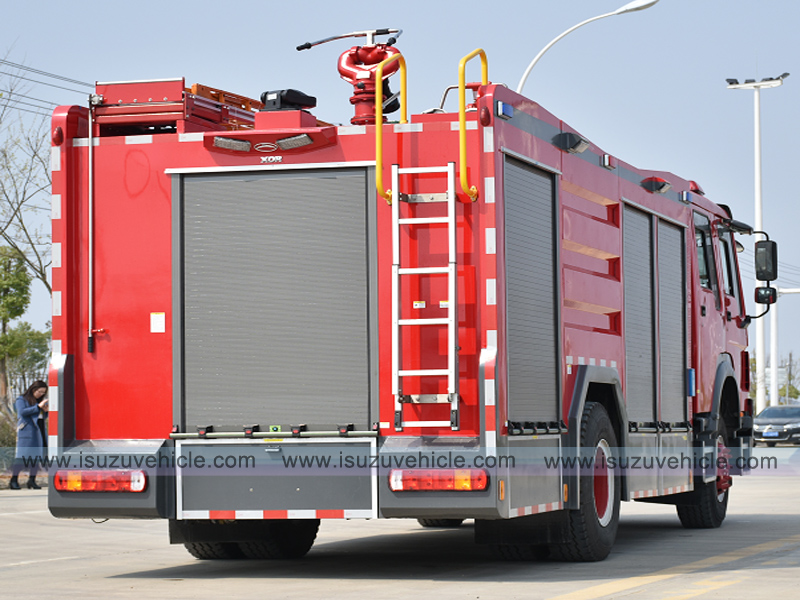

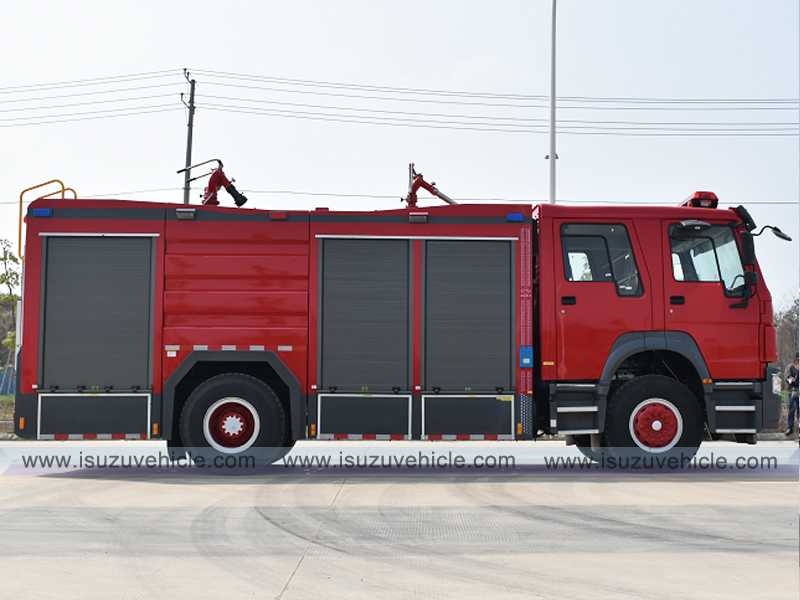

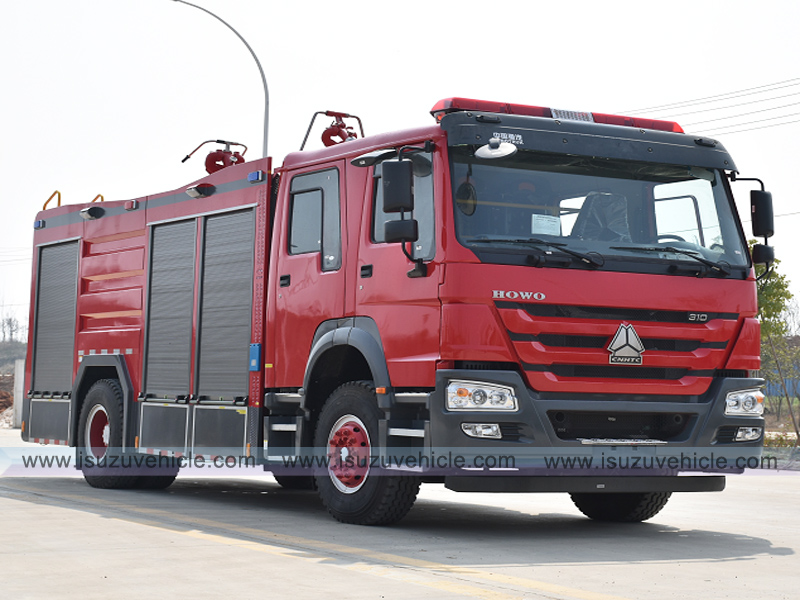

Water foam fire fighting truck (also called as fire fighting engine, fire apparatus, fire fighting equipment, foam fire truck, fire extinguishing truck, fire-extinguishing foam truck) is widely used in urban public security fire brigades, petrochemical field, industrial & mining enterprises, forest, ports, docks, etc. It can extinguish the fire independently, and also supply water-foam mixture to the fire site, suitable for extinguishing general fires, regarded as the fire vehicle for public security fire brigades, and full-time fire brigades of enterprises and institutions.
Features:
1.Water type or foam/water or Water foam dry powder combination type.
2.Highly efficient for fire extinguishing.
3: Powerful fire pump & fire cannon.
4:A complete set of fire service implements.
Advantage:
1: SINOTRUK HOWO brand chassis, perfect performance, SINOTRUK engine, super powerful, reliable performance.
2: The main frame structure is welded by high quality square tube. Roof is non-slip and can walk.
3: Aluminum alloy rolling shutters are arranged on both sides of the equipment box, and there are lights inside.
4: Long row of warning lights installed on the top of the cab; power 100W; one light above the rear of the vehicle.
5: Crew room; equipment box and pump room set lighting.
6: Drive type:4x2,4x4,6x4,6x6,8x4.
Main Technical Performance Parameters:
7,000 Liters water foam fire fighting truck | |||
General | Chassis Brand | SINOTRUK(RHD) | |
Overall Dimension(mm) | 7925×2505×3450 | ||
GVW/Curb Weight(kg) | 15000/8650 | ||
Cab | Cab Seat | 2+4 | |
Air Conditioner | Equipped | ||
Engine | Fuel Type | diesel | |
Engie Model | WD615.62 | ||
Engine Brand | SINOTRUK | ||
Power(kw/hp) | 195/266 | ||
Displacement(L) | 9.726 | ||
Emission Standard | Euro2 | ||
Chassis | Drive Type | 4*2 | |
Transmission | 8speed, Manual | ||
Wheelbase(mm) | 4600 | ||
Tire Specification | 12.00R20 | ||
Tire No.(pcs) | 6+1 | ||
Max Speed(km/h) | 95 | ||
Paint | Metallic paint | ||
Fire Truck Water Tank Structure Parameters | |||
Water Tank Volume | 4000L | Tank Material | Carbon Steel |
Foam Tank Volume | 2000L | Tank Material | Carbon Steel |
Dry Powder Volume | 1 ton | Nitrogen Cylinder | 70L/pcs, in total 3pcs |
Tank Thickness | 4/3/3mm | Fire pump | CB10/60 |
Fire monitor | PL48 | Color and Logo | Optional |
Standard configuration | Chassis,sub frame, van body, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/60according to the capacity), fire canon (PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel,common tools, rear climbing ladder, water tank, foam tank, dry powder tank, nitrogen system | ||
