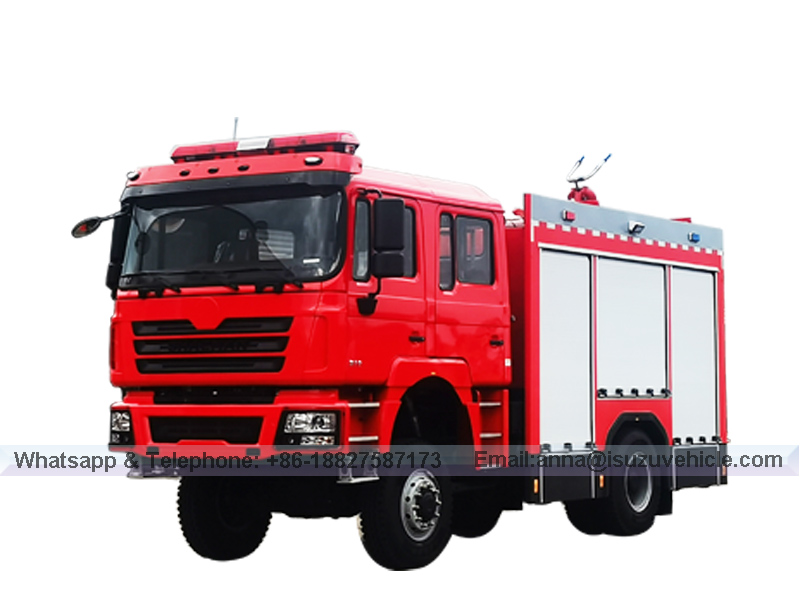

Shacman 4x4 Water and Foam Fire Truck

Fire trucks, as an important part of the urban safety system, undertake multiple tasks such as fire rescue, rescue and disaster relief. They not only play a vital role in fighting fires, but also show unique advantages in dealing with various emergency situations.
Availability:
Quantity:

Truck Description:

The most basic and well-known function of fire engines is to fight fires. Fire trucks equipped with fire extinguishing agents such as water tanks, foam and dry powder can quickly respond to fire alarms and suppress fire sources through high-pressure water guns, foam guns and dry powder spraying devices, effectively preventing the spread of fire. In addition, the fire truck is also equipped with a variety of professional rescue tools such as breaking tools, life lines, air breathing apparatus, etc., in order to respond to various emergency rescue needs to ensure the safety of firefighters and trapped people.

Fire Fighting Truck Features:

1.Water type or foam/water type.

2.Highly efficient for fire extinguishing.

3:Super powerful fire pump & fire cannon.

4:A complete set of fire service implements.

Advantage:

1: Shacman brand 4X4 chassis, perfect performance, Weichai engine, super powerful, reliable performance, no overhaul within 100,000 km.

2: The main frame structure is welded by high quality square tube. Roof is non-slip and can walk.

3: Aluminum alloy rolling shutters are arranged on both sides of the equipment box, and there are lights inside.

4: Long row of warning lights installed on the top of the cab; power 100W; one light above the rear of the vehicle.

5: Crew room; equipment box and pump room set lighting.

6: Drive type:4x2,4x4,6x4,6x6,8x4.

Specification:

Fire fighting truck with water and foam   tank (5,000   Litres)

General

Vehicle Brand

CSC

Chassis Brand

SHACMAN 4X4

Overall Dimension

6500 x 2500 x 3600 mm

GVW / Kerb Weight

16000kg / 7,640kg

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

Air conditioner is optional

Engine

Fuel Type

Diesel

Engine Brand

Yuchai

Power

340 Ps (250 KW)

Displacement

9726 ml

Emission Standard

Euro II

Chassis

Drive Type

4X2, left hand drive

Transmission

10-speed front, 2 reverse

Wheelbase/No. of axle

4600 mm / 2

Tyre Specification

12.00R20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Water Capacity

4,000 Litres (About 1,056 gallons)

Foam Capacity

1,000 Litres (About264 gallons)

Tank Material

Carbon steel

Fire Pump

Flow speed

40L/s

Pressure

1.0MPa

Fire Cannon

Flow speed

Water

55 L/s

Foam

45 L/s

Shot

Water

55m

Foam

45 m

Suction Head

6 m

Hose

High quality, wire strengthened hose,   with cooper wire, anti-static

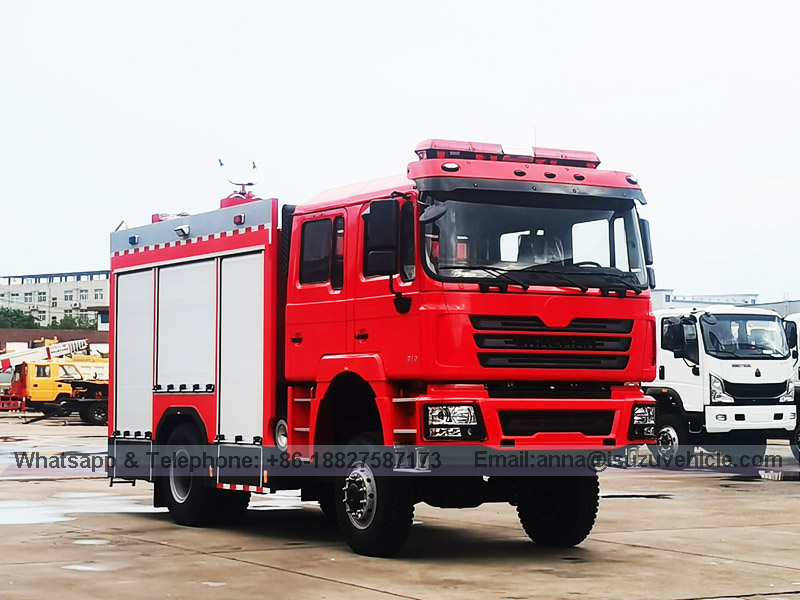

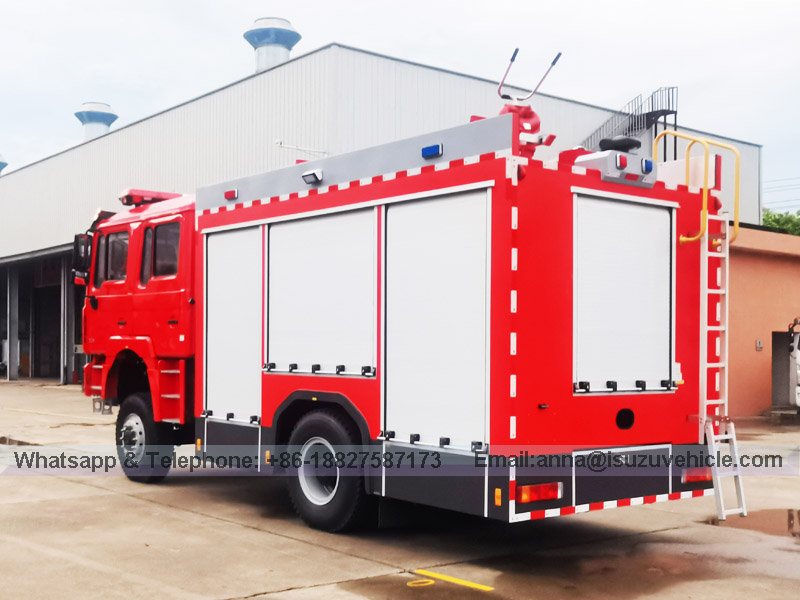

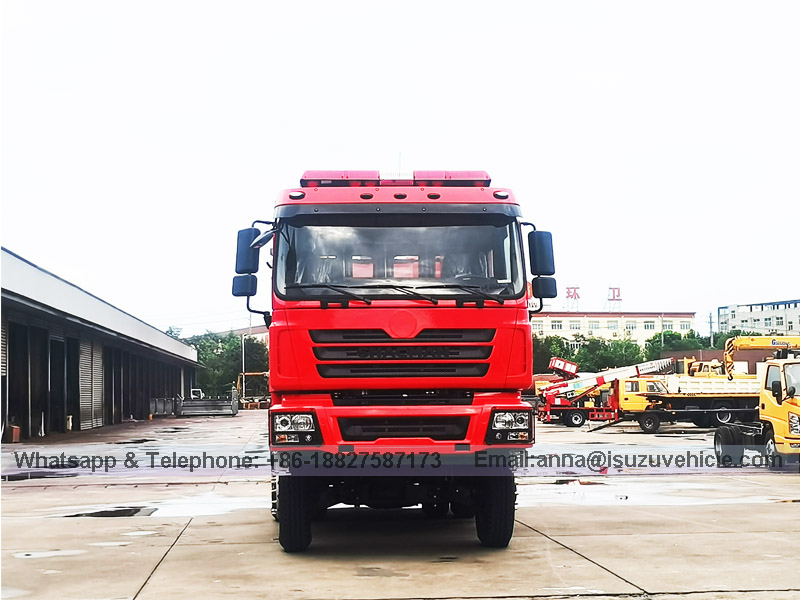

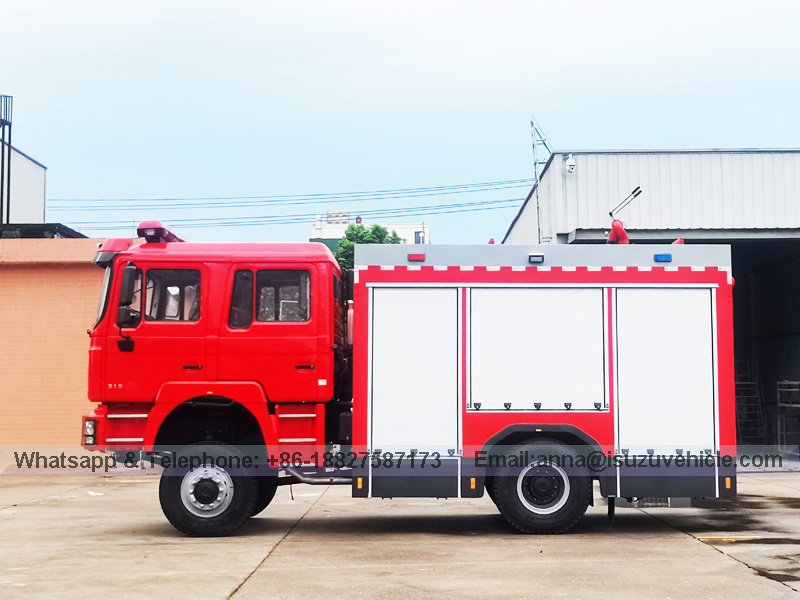

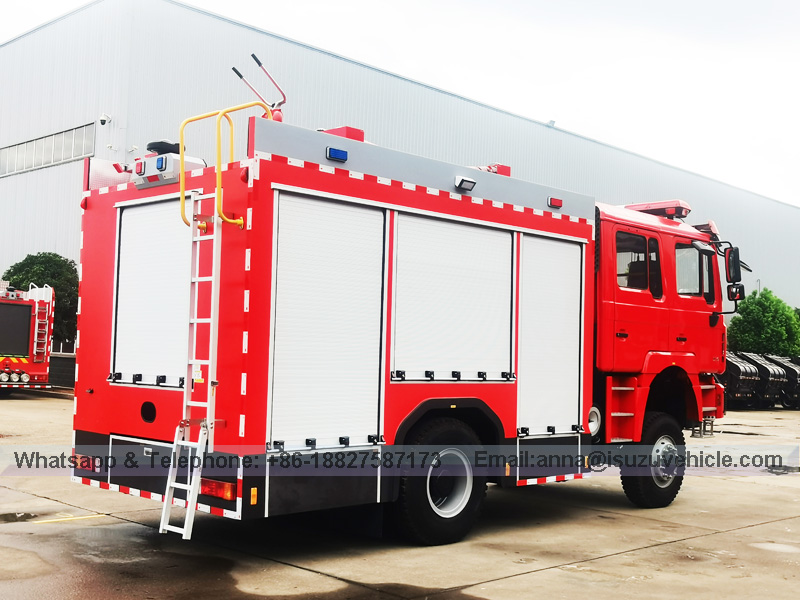

Shacman Fire Truck-1Shacman Fire Truck-2Shacman Fire Truck-4Shacman Fire Truck-5Shacman Fire Truck-3
